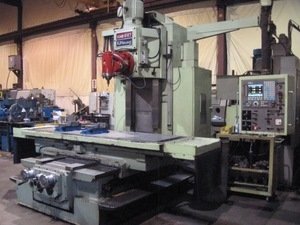

KiHeung, Model KMB-U-H7 CNC Bed Type Universal Milling Machine.
This heavy duty bed style mill is best suited for heavy milling operations. Reach 4 sides of the work piece without moving it using the universal #50 taper milling spindle. This is in excellent running condition and is available for immediate delivery.
Specifications:
Specifications:
Table:
Dimensions 2,700mm x 750mm
Max Load 4,000Kgs
Travels: X - Axis 2,000mm (78.74”)
Y – Axis 1,000mm (39.37”)
Z – Axis 800mm (31.50”)
Distances: Spindle Face (vertical position) to column 875mm (34.45”)
Spindle Face (horizontal position) to column 955mm (37.6”)
Table Surface to Spindle Face
• Vert. Position - 50 ~ 850mm (1.97” ~ 33.46”)
• Horz. Position - 130 ~ 930mm (5” ~ 36.6”)
Spindle: Taper NT#50
Motor 11kW
# of Speed Positions 18
Spindle Speeds 18; 23; 30; 39; 49; 64; 85; 107; 140; 170; 214; 280; 360; 448; 590; 785; 980 &1300 RPM’s
Motors: Spindle Motor 11 kW ( 15 HP)
Feed drive motor 3 kW ( 4 HP)
Hydraulic pump motor 1.5 kW ( 2 HP)
Coolant pump motor 0.18 kW ( 0.25 HP)
Machine Weight: 15,000 Kgs
Overall Dimensions: 5.8M(L) x 3.5M(W) x 3.4M(H)
Includes:

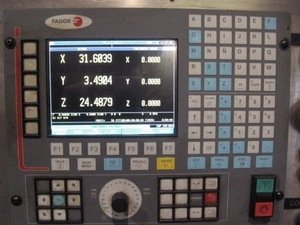

• FAGOR 3 Axis CNC Control System,
• Precision Measurement Glass Scales (X,Y & Z Axis)

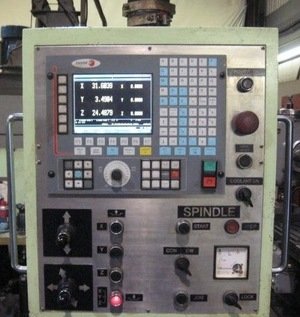

• Pendant Control Panel,

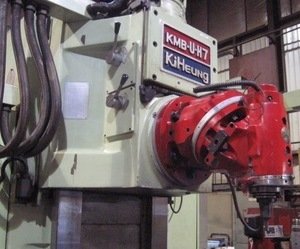

• Universal (manual) Position Milling Spindle,
• All available manuals.
• Coolant system,
