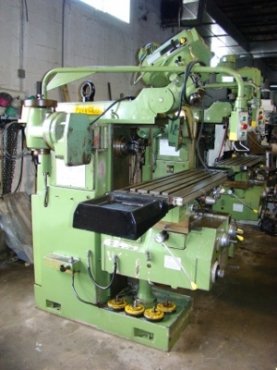

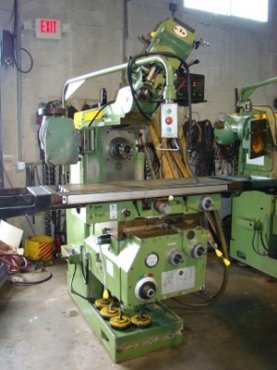

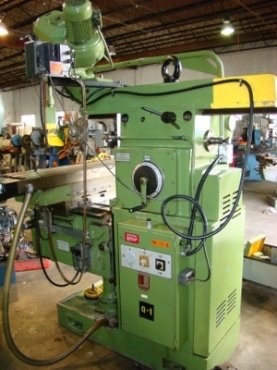

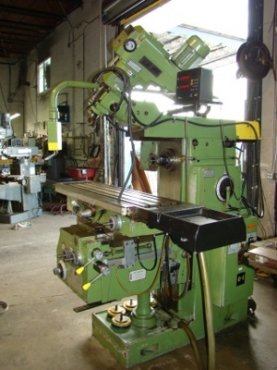

No. FUTV-1400, LAGUN, 50 taper, hor/vert spindle, turret head, DRO, 1984, #45
UED Category: 0M2680 MILLERS, UNIVERSAL
No. FUTV-1400 MANUFCTR LAGUN

Model FUTV-1400
Year of Manufacture 1984

SPECIFICATIONS:
Table working size 55" x 13-3/8"
Maximum table load 880 lbs
Table swivel +/- 45 degrees
Table travel--longitudinal 41"
--cross 13"
--vertical 18-3/4"

HORIZONTAL SPINDLE:
Spindle taper #50 taper
Number of speeds 18
Range of speeds 42 to 1400 rpm
Power feed rates--number 18
--range (X & Y axis) 1/2 to 31-1/2 IPM
--range (Z axis) 9/64 to 9-7/16 IPM
Main spindle motor 6 HP

RAM MOUNTED VARIABLE SPEED HEAD:
Main motor 3 HP
Number of speeds Variable
Range of speeds--low 60 to 490 rpm
--high 490 to 4200 rpm
Spindle nose taper #40 taper
Quill diameter 3-3/8"
Quill travel 5"

Electrics 550/3/60
Machine weight 5,730 lbs
