Specifications:(are accurate to the best of our knowledge)

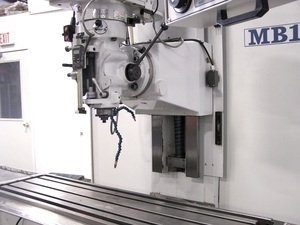

· Milltronics 3 Axis CNC Vertical Mill
· TABLE SIZE - 13" X 55"
· TABLE TRAVEL, LONGITUDINAL - ( X ) 32"
· TABLE TRAVEL, CROSS - ( Y ) 19"
· QUILL TRAVEL - 5"
· TRAVEL, VERTICAL - ( Z ) 22.5"
· SPINDLE SPEED RANGE VARIABLE - 4500 RPM
· SPINDLE TAPER - #30
· RAPID TRAVERSE RATE - 200 ipm
· FEEDRATE RANGE - 200 ipm
· SPINDLE MOTOR 5 HP w/INVERTER DRIVE
· ELECTRICS - 220/60/3
· APPROXIMATE MACHINE WEIGHT - 6,000 LBS.
· APPROXIMATE MACHINE DIMENSIONS - 60"LR x 76"FB x 82"H

Equipped with

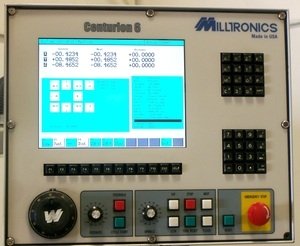

· CENTURIAN VI 6 3-AXIS CNC CONVERSATIONAL CONTROL - PC BASED
· RS-232 PORT
· GRAPHICS FUNCTIONS
· FULL 3-aXIS SIMULTANEOUS CNC
· HARDENED & GROUND BOX WAYS ON SADDLE & COLUMN
· POWER DRAW BAR
· COOLANT SYSTEM w/CHIP PAN
