Description:

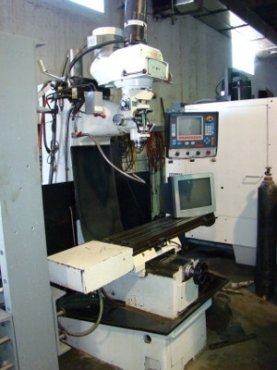

HURCO (NEWALL) #BM23, SmartPath 2.5 axis cont, 10" x 50" tbl, 3 HP, NST 30, 2000
Specifications:
Year of manufacture 2000
Model BM23
Control SmartPath
SPECIFICATIONS:
Size of table (length x width) 50" x 10"
Longitudinal travel 31-1/2"
Cross travel 16"
Maximum head (Z) travel 18"
Maximum workpiece weight (centered) 1000 lbs.
Main motor 3 HP
Spindle speeds--number Inf. variable
--range 70 to 4000 rpm
Spindle taper NST 30
Quill diameter 3-3/8"
Database: AMMQ Machine Inquiry
--------------------------------------------------------------------------------
Machine ID# : 5758 ID Code: I USED Tag#: Sales Rep: GA
Acq'd From: AUCTION 1 08/06/08
-------------------------------------------------------------------------------
Quill travel 5"
Electrical 220/440/3/60
Dimensions (L x W x H) 112" x 79" x 80"
Weight (approx.) 4,250 lbs.
SMARTPATH Control Features:
Conversational programming, Conversational auto run, Dry run
Feedrate override, Auto radius bland, Inch/metric programming
0.0001" programming resolution, Subroutines, Repeat loops
32 bit PC handware,
Canned cycles, Interpolation, RS-232 port, 3-1/2" floppy
EQUIPPED WITH:
3 axis CNC control, 2.5 axis programming
Auto lubrication, Coolant system with chip pan
Worklight, Hardened and ground ways
Way covers and safety hand cranks
Dimensions:
79" X 112" X 80"
Weight:
4,250 lbs
