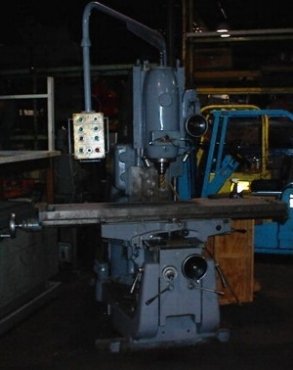

POLAMCO, FYA-41M, VERTICAL, MILLERS
  • Condition:Used
  • Category:MILLERS
  • Type:VERTICAL
  • Manufacturer:POLAMCO
  • Model:FYA-41M
  • YOM:-
  • Location:United States, hugo
  • Price:8500 USD
  • Stock No:-
  • Control:-
  • ID:AS17830
Description:
General Specifications:
Pendant Control: Start/Stop/Speed Changes/Feed Changes/ Coolant on/off/Rapid Traverse.
Spindle Speeds 28 to 1300 RPM 21 Ranges.
Has Power-Down Feed on spindle.....18 1/2"
Has 16 Feed Ranges 0.50 to 2104
Table Size 78" & 16" Travel Long.....40" Cross 16"
Knee Vert. 14" Head Travel.....10"
Has outboard supports on knee.
Has 4-way Adj. Stops on Vert. Spindle Head.
Has Adj. Stops X-Y-Z (Powered X-Y-Z)
Main Drive Motor 15 HP> 220/440/3Ph.
Built-in coolant system
Overall dim 8'F.B. & 8'W. & 8 1/2 High.
Est. Wt. 8000 lbs
Price just reduced from $10,500- $8,500.
Rick Canniff 612 281-3736
Specifications:
1 Refurbished Pines no. 2 tube bender-CNC
Model ENC-075 S/N 13900-82063
--------------------------------------------------
General Specifications:
Up-Dated 07 New Adaptive Controls
Touch screen interface system
Controls: Main Cabinet
Enable/Pump start/Cycle start/Cycle Hold& Edit-Lockout/Jog+/jog-/Emerg.Stop
Stand Control: Enable/Fwd/Load/Emerg. Stop&
Clamp/collet close/cycle stop
Auto. Lube System & Adj. -Air System 90 PSI required
Left Hand bend, 200 deg. max. bend, 0-200 adj. stops
Capacity:
3" hole through plane of bend
6' Travel on plane of bend
Steel tubing, Y.P. to 40,000 PSI 3" X .109"
Stainless Steel Y.P. to 60,000 PSI 3" X .065"
Non-ferrous tubing, Y.P. to 25,000 PSI 3" X .188"
Steel Pipe, Schedule 80.....2"
Pump Motor 20 HP. 440/3 Ph.
Standard bend radius to centerline.....12"
Standard Max. tube Length over mandrel 120"
Standard carriage Travel....72"
Comes with operation Manual, blue prints and warranty.

Sincerely,

Rick Canniff
612 281-3736
Dimensions:
8' W. X 8'L X 8 1/2' H
Weight:
8000 lbs
