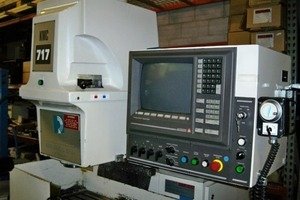

Republic/Lagun KMC 717, Dyna Path, 1998, 3 Axis CNC Knee Mill

General Specifications As Per Brochure:
Table size 58" x 11" (1,473 x 279 mm)
Table Travel (X axis): 32" (812 mm)
Table Saddle (Y axis): 17" (431 mm)
Table Quill (Z axis): 7" (178 mm)
Knee travel 16" (406 mm)
T-slots Three 5/8" on 2-1/2" centers (3-0.62 on 63 mm)
Gibs Adjustable on X, Y, and Knee
Ram Adjustable (rigid optional)
Spindle:
Spindle motor 7-1/2 HP (5.5 kW) (30 min. duty rating)
Spindle taper #40 NMTB
Speed range 55 - 4,250 RPM
Quill diameter 4-3/8" (110 mm) hardened

Machining Capacity:
Workpiece weight 1,500 lbs. (680 kg)
Max. distance: spindle to table 19 " (488 mm)
Drilling - mild steel 1 " diameter (25 mm)
Milling - mild steel 8 cubic ipm (131 cm3pm)
Positioning accuracy 0.0004" ( 0.01 mm)
Repeatability 0.0001" ( 0.002 mm)
Input resolution 0.0001" (0.002 mm)
Output resolution 0.0001" (0.002 mm)
Rapid traverse (X and Y axes) 350 ipm (9 mpm)
Feedrate 0.1 - 250 ipm (0.002 - 6 mpm)
Feedrate overrides 0 - 150% (all axes)

Equipped With:
Dynapath 3 Axis CNC Control with Floppy Drive,
Standard G-Code
Serial Port and Hand-Held Pendant
Programmable Spindle Speeds
Self Contained Flood Coolant and Mist System
Lower Chip Tray
Manuals

Machine: 73" x 62" x 102" 6,000 lbs
