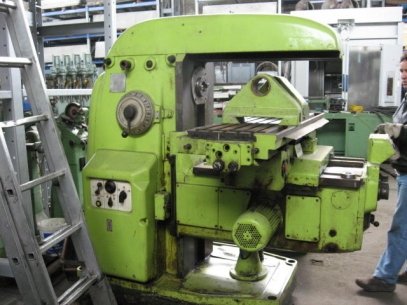

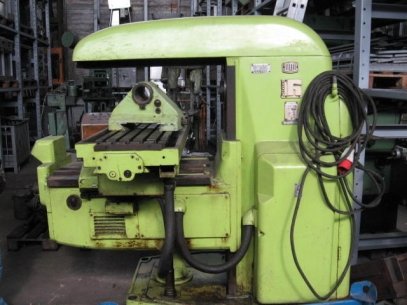

Metal milling machine FW 400 of WMW
Type of Machine: Fritz Heckert vertical milling machine metal

Weight: 3,650 kg
Performance / Power: 13.5 kW
Table: 1,600 x 460 mm
Travel 1,200 x 400 mm
Spindle taper: SK50

2 pieces brace and milling shaft available
Speed ​​28 | 1,400 1/min adjustable by handwheel

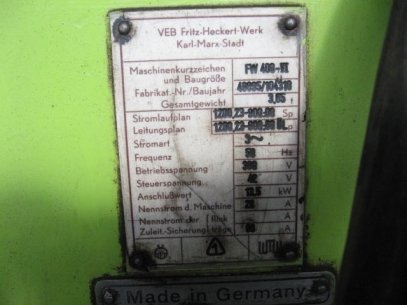

Manufacturer - No / Year: 49895/104310
Circuit diagram :1200.23-900: 00 Sp
Management plan: 1200.23-908:00 ÜLp
Electricity supply: 3 phase AC
Frequency: 50 Hz
Operating voltage: 380 V
Control voltage: 42 V
Nominal current of the machine: 28 A
Lead fuse (slow): 80 A

dimensions
Height: 1,900 mm
Width: 1,700 mm
Depth: 2,000 mm

-
