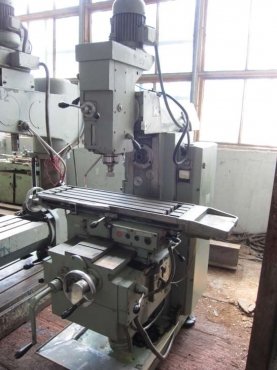

Universal vertical milling machine 6T80SH made in Lithuania. Universal milling machine console with swivel head. 6t80SH model machines are designed for milling various of ferrous and non-ferrous metals and their alloys in the batch and small batch production.
Specifications:

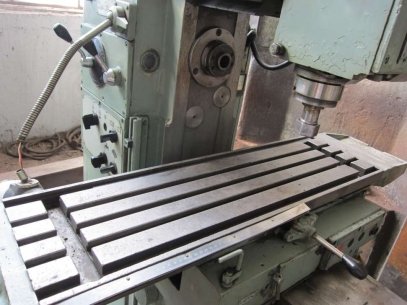

Dimensions of working table surface (length x width): 200 х 800 mm

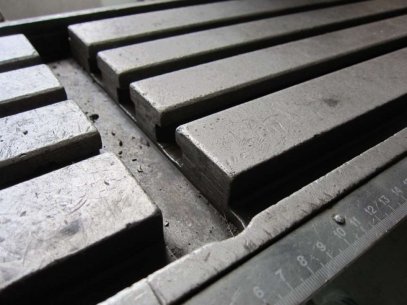

Number of table T-slots: 3
Max table travel:
-longitudinal: 560 mm
-traversal: 220 mm
Distance from axis of horizontal spindle to working table surface:
-min: 0 mm
-max: 400 mm
Distance from vertical spindle back to working table surface:
-min: 15 mm
-max: 400 mm
Spindle back according to GOST 24644-81 40

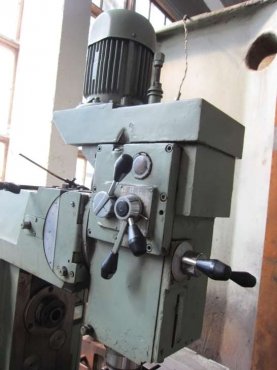

Turn angle of spindle head:
-in the longitudinal table plane: ± 45 deg
-in the traversal table plane (to bed): 30 deg
-in the traversal table plane (from bed): 45 deg
Spindle head stroke: 70 mm
Number of spindle rotation frequencies (horizontal / vertical): 12
Limits of spindle rotation frequencies:
-horizontal: 50-2240 rpm
-vertical: 56-2500 rpm
Number of table feeds: 18
Limits od table feeds:
-longitudinal and traversal: 20-1000 mm/min
-vertical: 10-500 mm/min
Speed of fast table travel:
-longitudinal and traversal: 3,35 m/min
-vertical: 1,7 m/min
Limb segmentation price of table travel:
-longitudinal and traversal: 0,05 mm
-vertical: 0,02 мmm
Limb segmentation price of sleeve travel of vertical spindle: 0,05 mm
