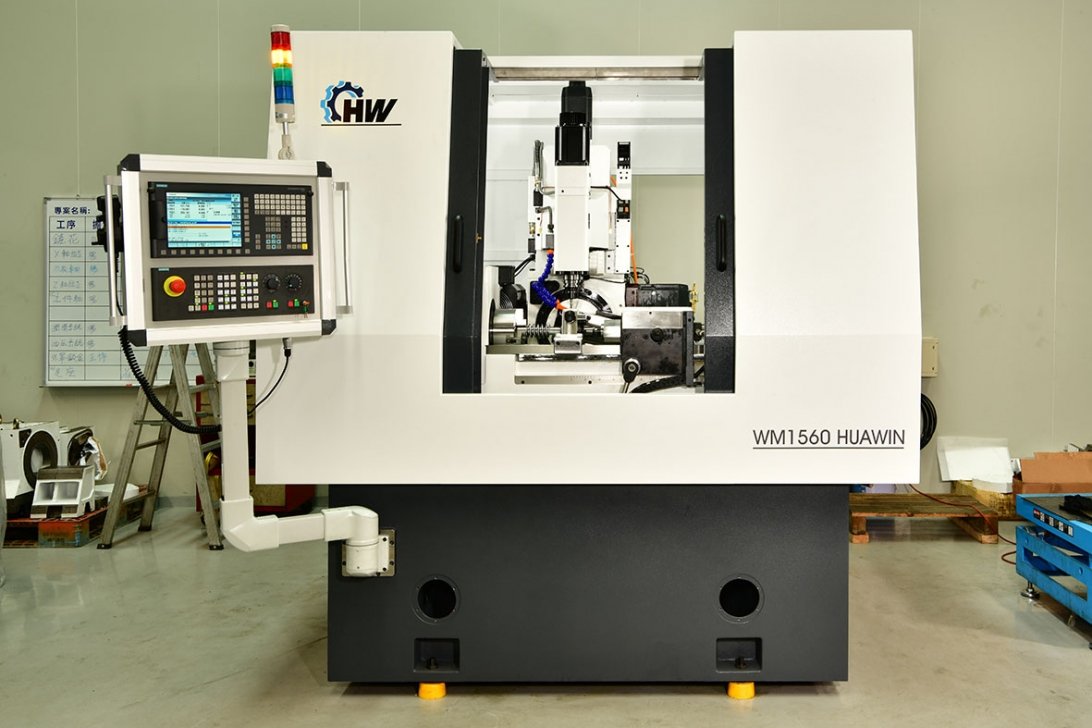

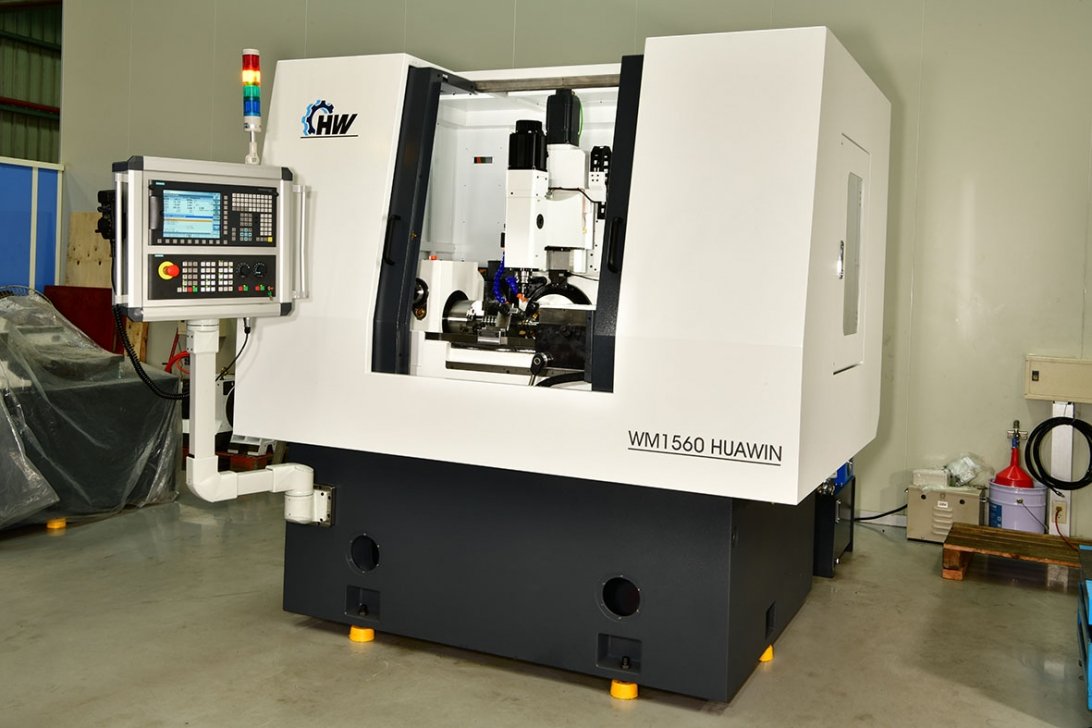

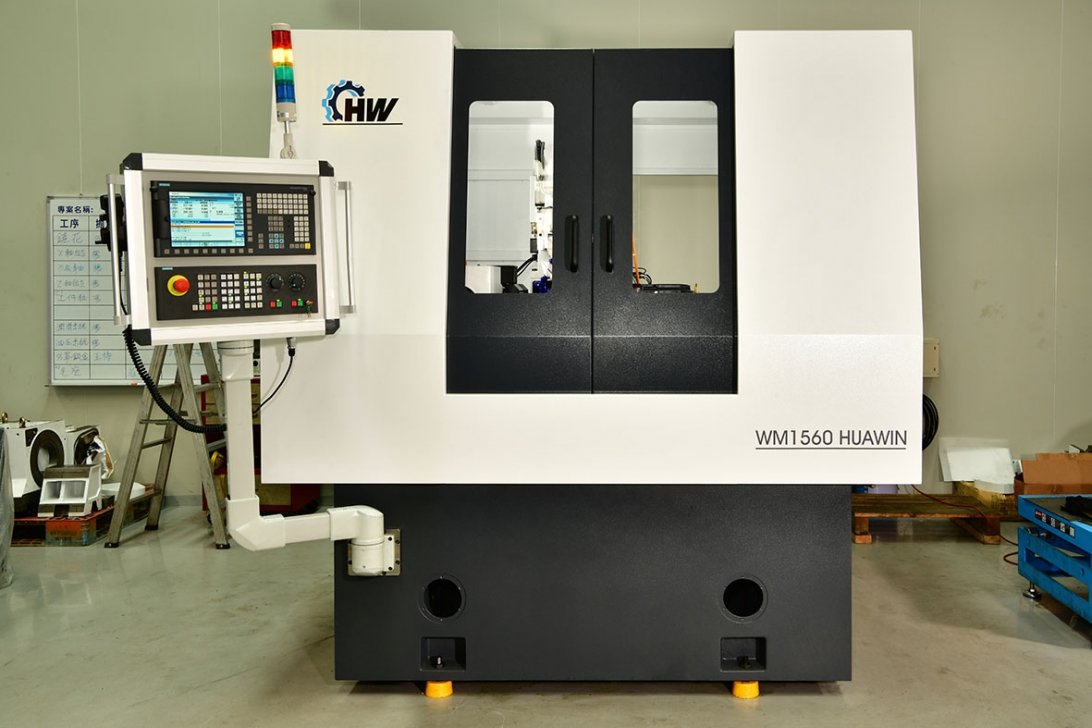

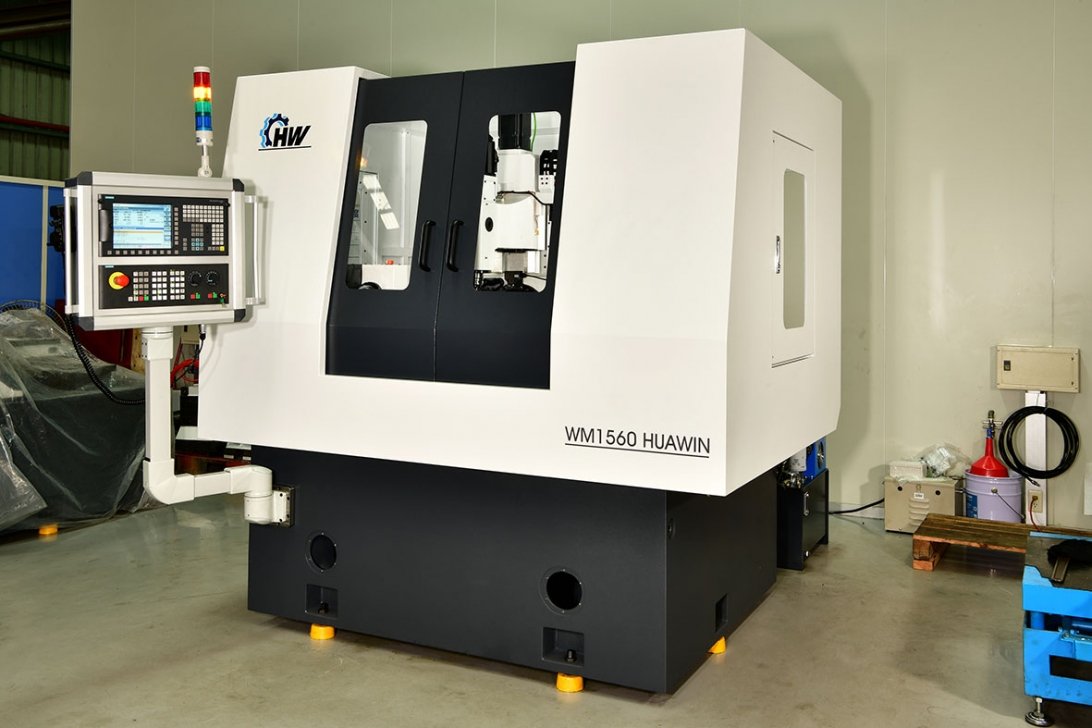

Worm milling machine HUAWIN WM1560 made in 2020 in Taiwan.

Work-piece
Max. module: 6 mm
Max. diameter: 150 mm
Max. work-piece length: 600 mm
Milling
Max. milling diameter: 100-135 mm
Milling aperture: 25.4, 31.75 mm
X-axis travel: 150 mm
Y-axis travel: 100 mm
Z-axis travel: 600 mm
A-axis angle: +90 -35 degrees
C-axis:
-Rated torque: 1200 Nm
-Max. speed: 10 rpm
-Chucks: Three-claw hydraulic chuck
B-axis:
-Power: 3,8 kW
-Max. speed: 360 rpm
Power capacity: 20 KVA
Air pressure: 0,5 Mpa
Floor space:
-Length: 2250 mm
-Width: 1700 mm
-Height: 2280 mm

5000 kg
