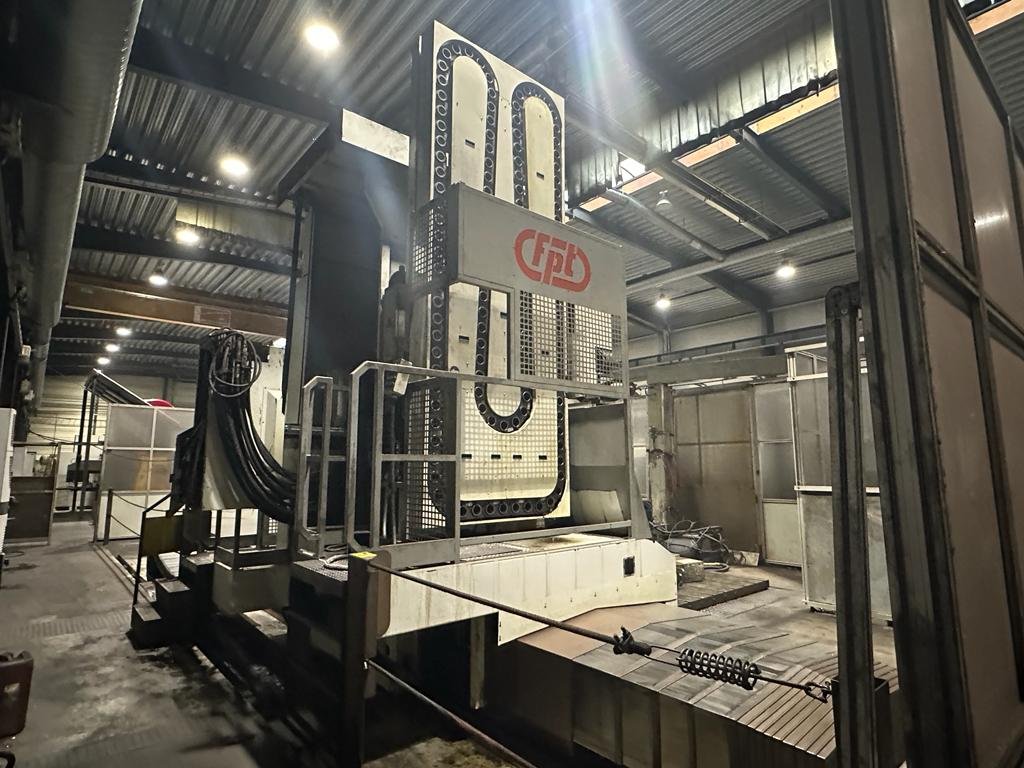

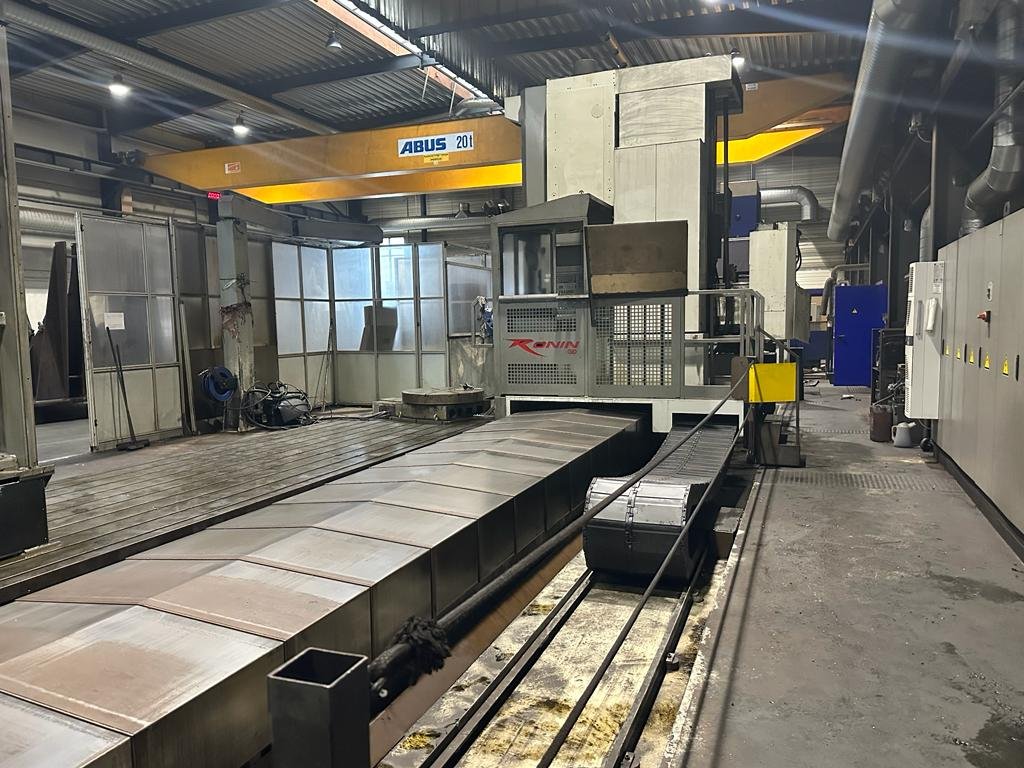

Bed type milling machine
FPT - Ronin M80 ATC Chain 100 positions
TUPCG5 Milling head 360.000 x 0.001 Gr
Torq 1180 Nm

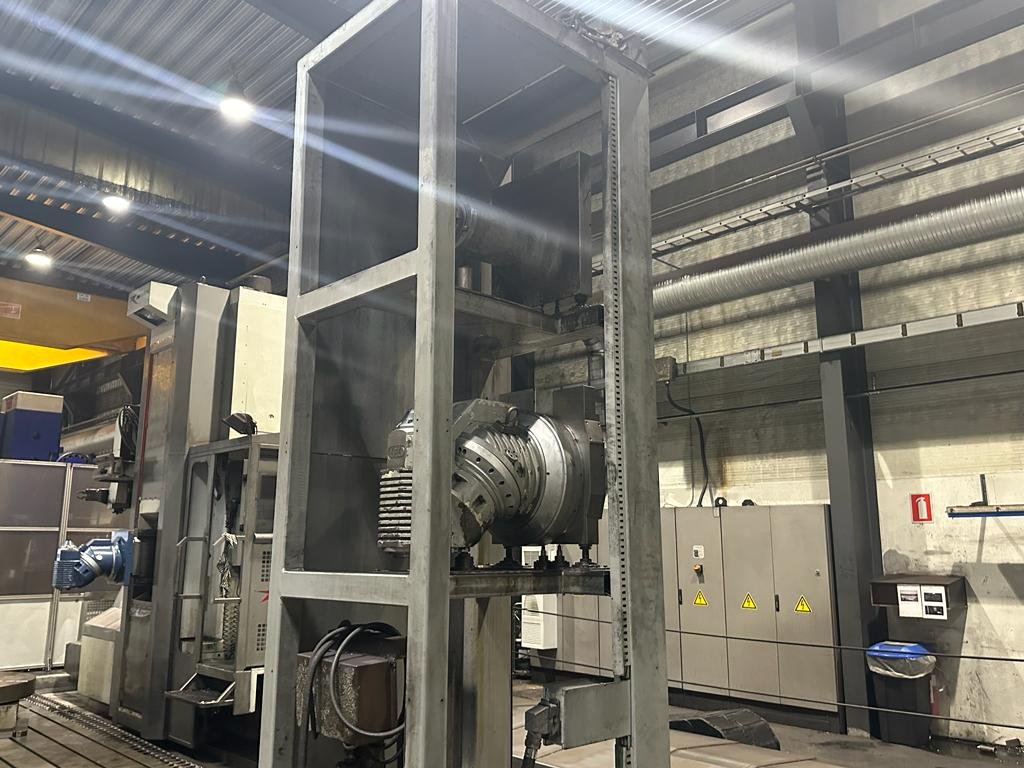

Head changer with 3 positions

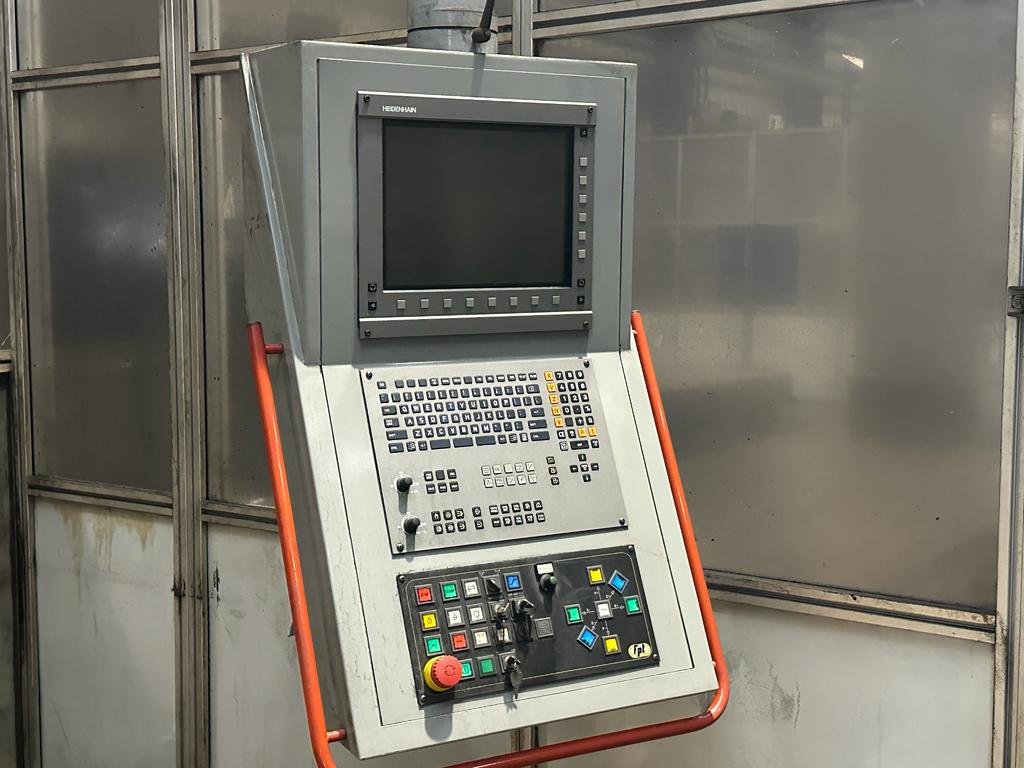

Double HeidenHain iTNC 530
Index table 1200 mm


X-Axis: 8000mm
Y-Axis: 2500mm
Z-Axis: 1500mm
Table Length: 9000mm
Table Width: 3000mm
Power on spindle: 46kW
Spindle speeds: 5000Rpm
Spindle Taper: 50 + HSK 63ISO/Bt/Mk
Feed rate X-Axis: 35000mm/min.
Feed rate Y-Axis: 35000mm/min.
Feed rate Z-Axis: 35000mm/min.
Millinghead auto-index:Micro head 1 Gr°
Length: 12900mm
Width: 7500mm
Height: 4800mm
