KIHEUNG, KNC U 1000, BED TYPE, MILLS

Condition:Used
Category:MILLS
Type:BED TYPE
Manufacturer:KIHEUNG
Model:KNC U 1000
YOM:2001
Location:Netherlands
Price:On request
Stock No:6826
Control:CNC
ID:AS29153

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

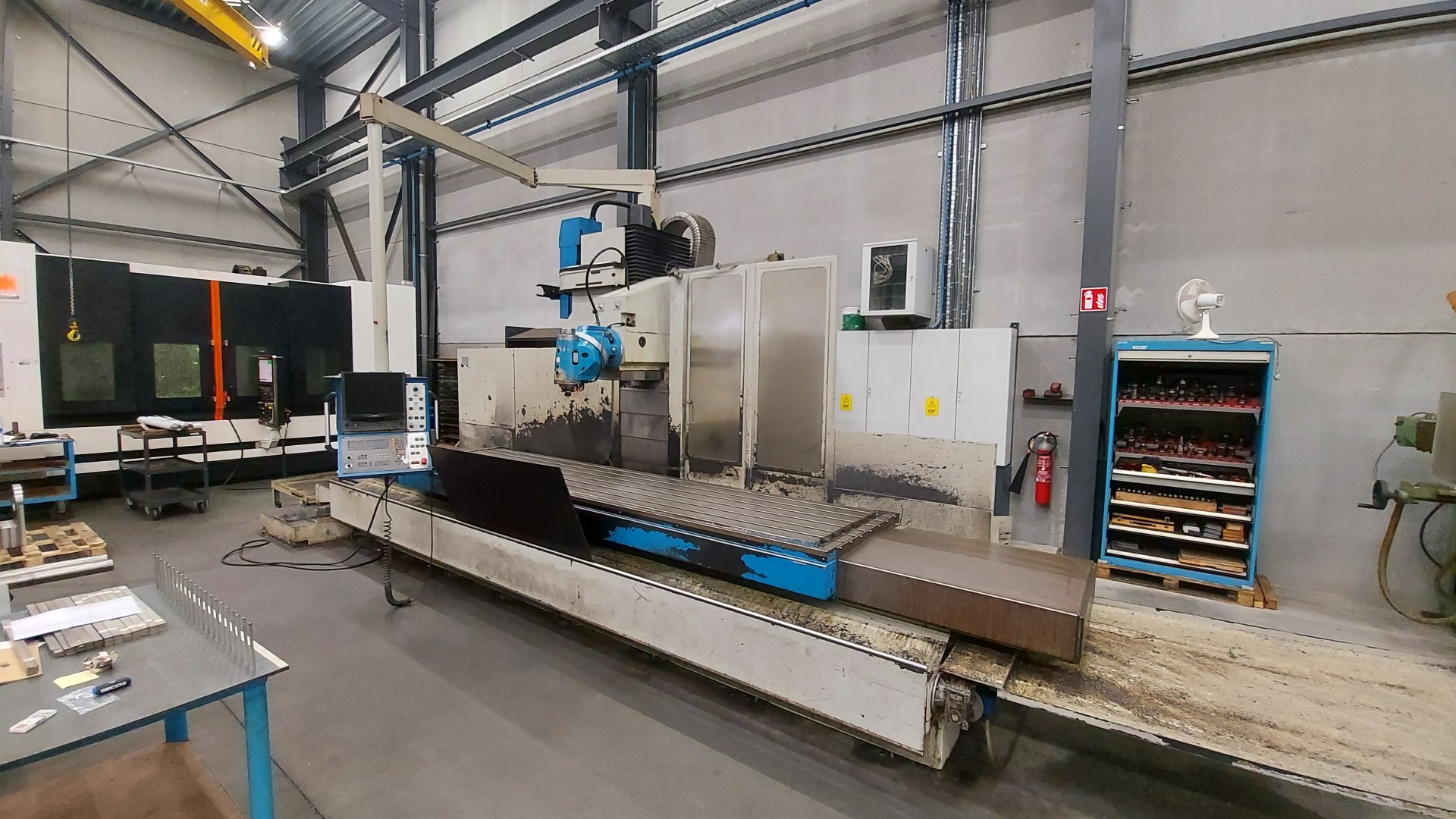

Bed milling machine KiHEUNG - KNC U 1000 6826 = Mach4metal

A2 Milling head Vertical + Horizontal

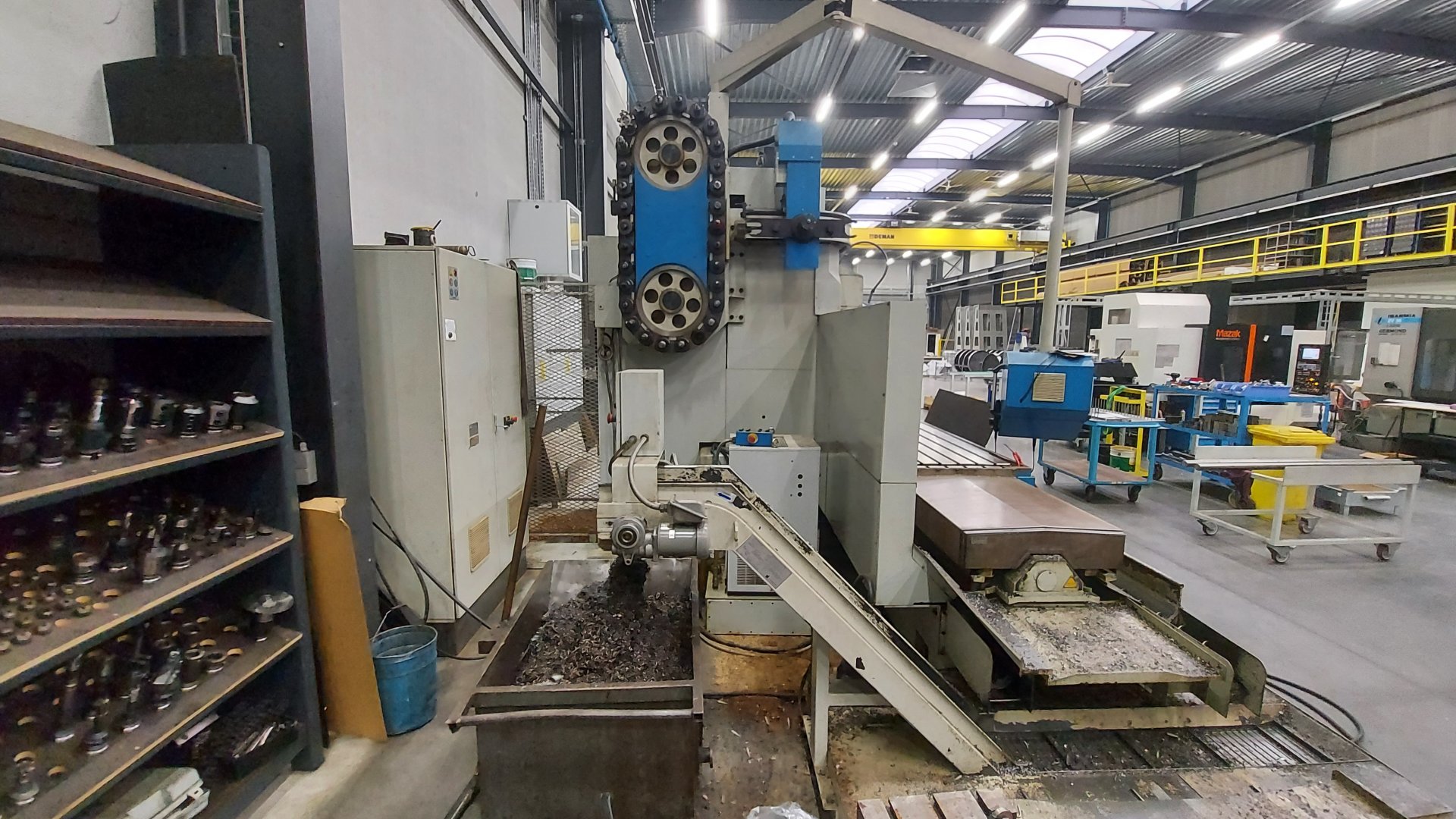

Chain ATC 30 Positions
Double chip conveyor
Doors for closed enclosure
X-Axis: 3.600mm
Y-Axis: 1.000mm
Z-Axis: 1.600mm

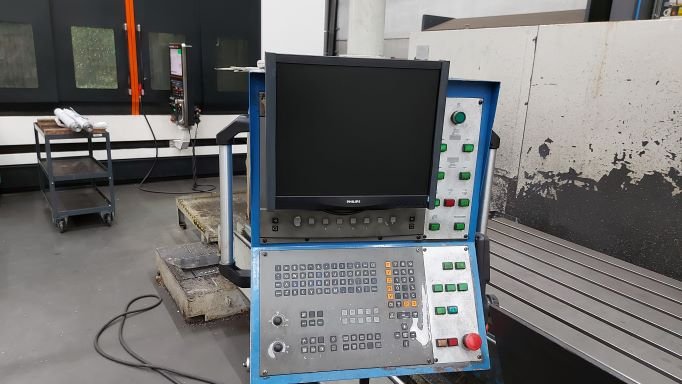

HeidenHain TNC 426
Table Length: 4.100mm
Table Width: 900mm
Table load: 8.000Kg
Power on spindle:38kW
Spindle speeds: 4000Rpm
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis:10.000mm/min.
Feed rate Y-Axis:1.000mm/min.
Feed rate Z-Axis:10.000mm/min.
Length: 9.950 mm
Width: 5.950 mm
Height: 3.800 mm
Weight: 26.000 kg

Specifications:

Bed milling machine KiHEUNG - KNC U 1000 6826 = Mach4metal

A2 Milling head Vertical + Horizontal
Chain ATC 30 Positions
Double chip conveyor
Doors for closed enclosure
X-Axis: 3.600mm
Y-Axis: 1.000mm
Z-Axis: 1.600mm
HeidenHain TNC 426
Table Length: 4.100mm
Table Width: 900mm
Table load: 8.000Kg
Power on spindle:38kW
Spindle speeds: 4000Rpm
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis:10.000mm/min.
Feed rate Y-Axis:1.000mm/min.
Feed rate Z-Axis:10.000mm/min.
Length: 9.950 mm
Width: 5.950 mm
Height: 3.800 mm
Weight: 26.000 kg

Dealer name:

Mach4Metal Netherlands, Babberich
