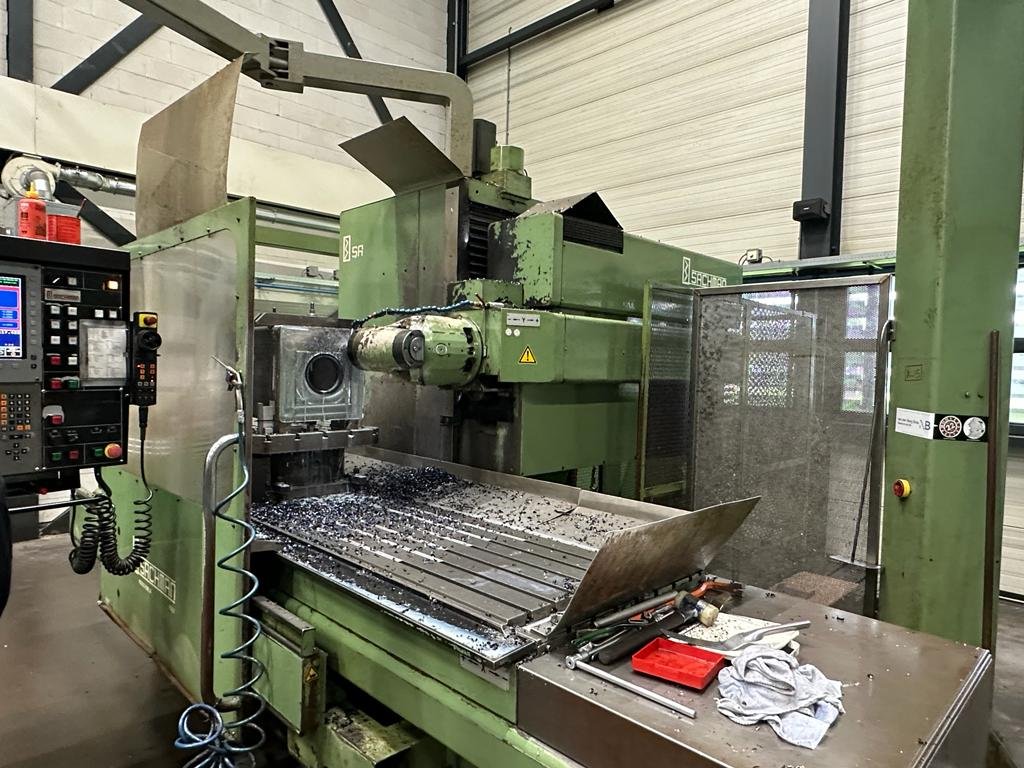

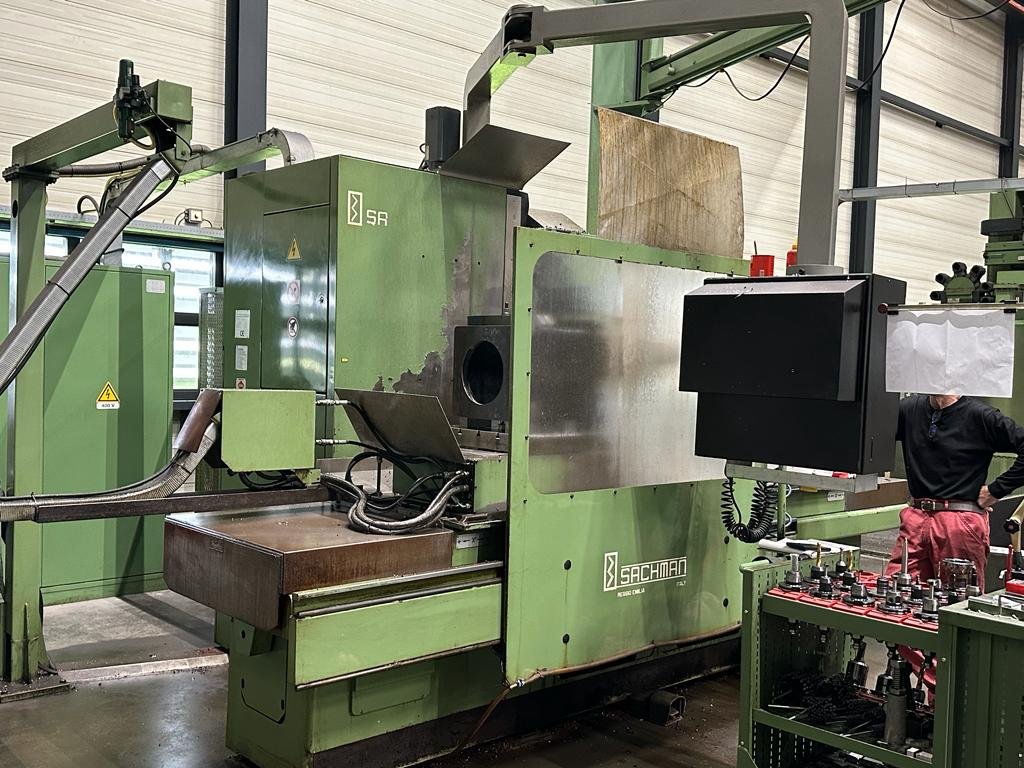

Bed type milling machine
Sachman - RP3
MACH-ID 7644

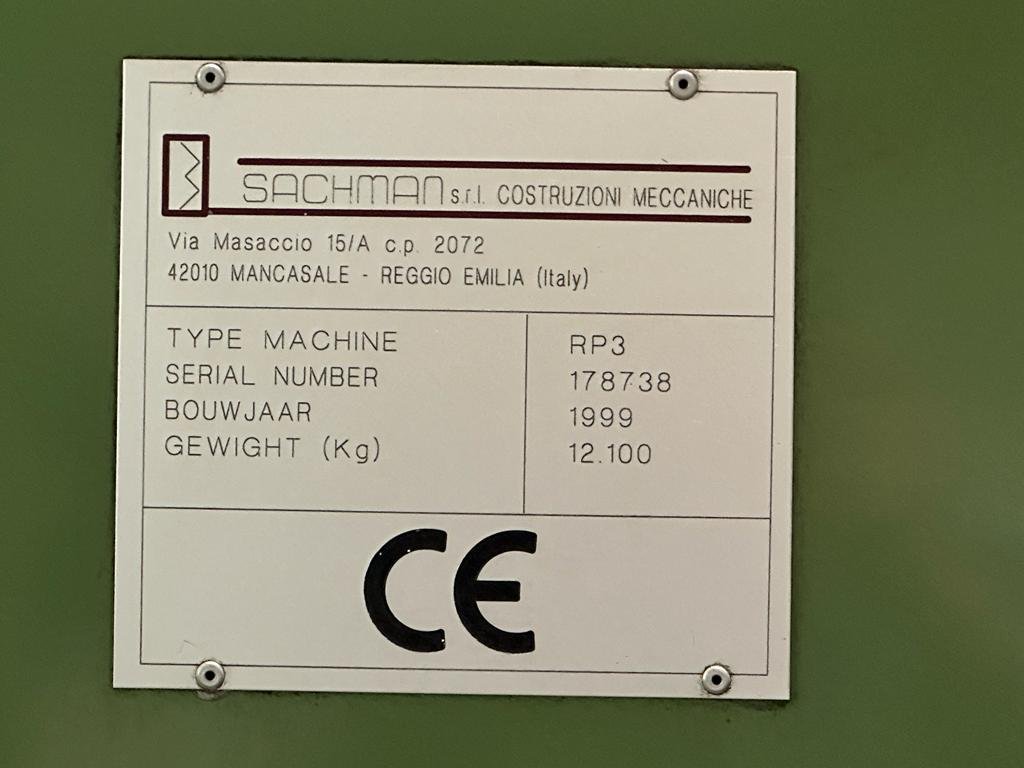

Make: Sachman
Type: RP3

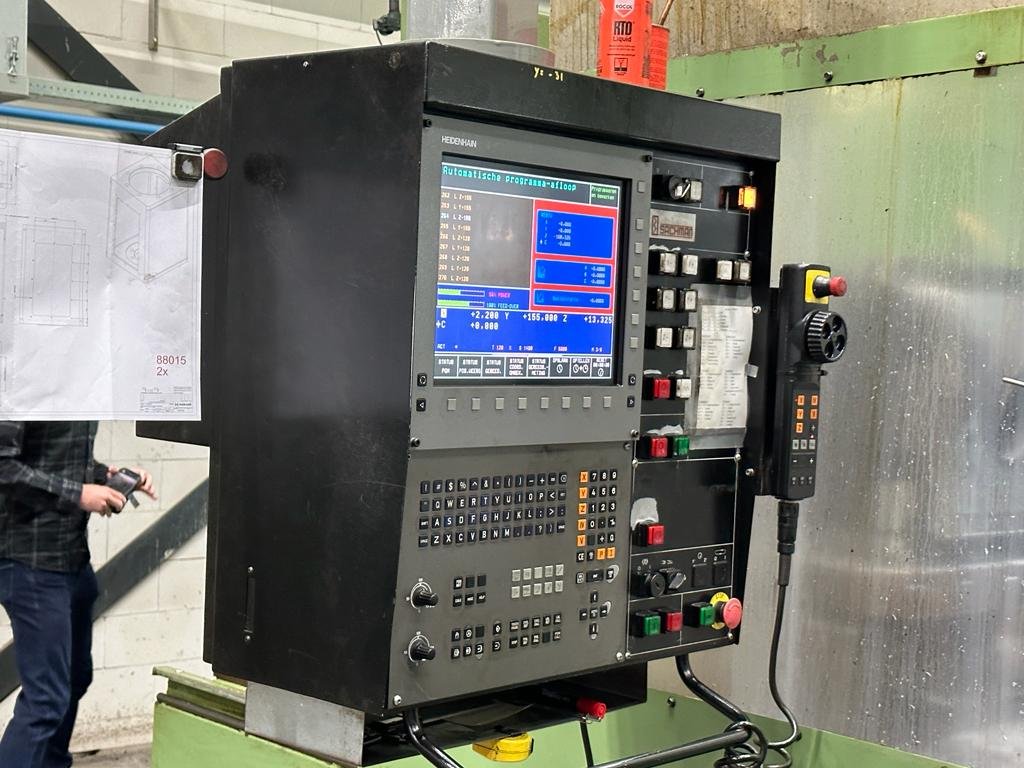

Control: HeidenHain TNC430

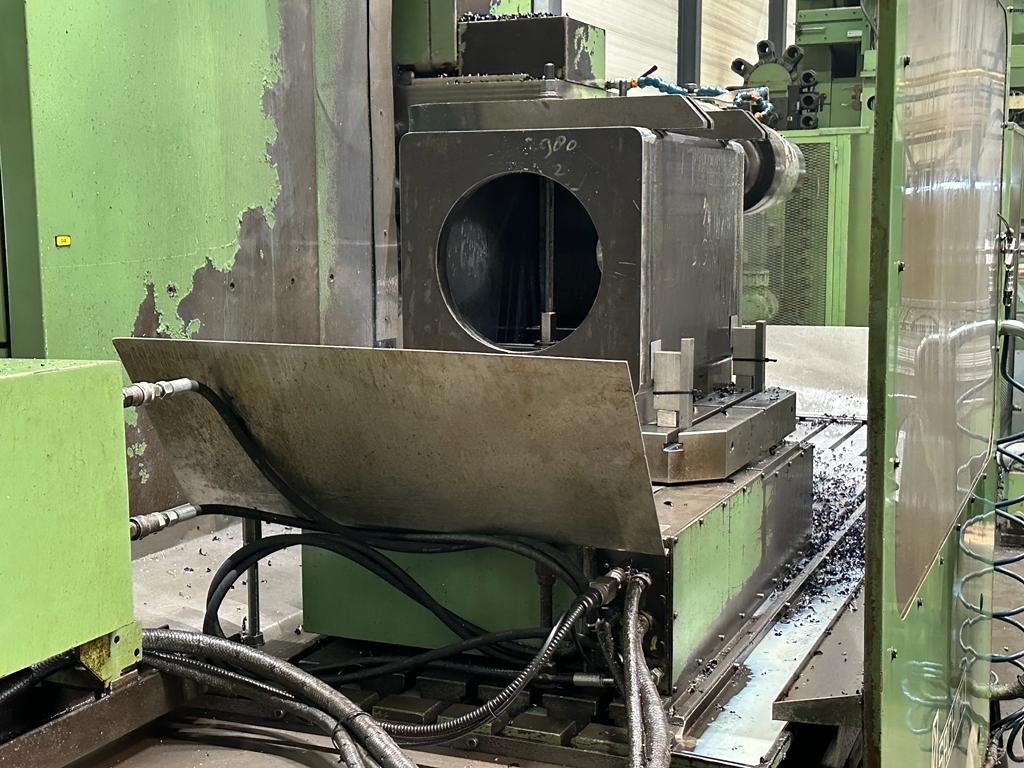

Year: 1999 Taboni 4e axis 630 x 630 with 18.000 Positions
Z Axis 1271 mm with rotated head

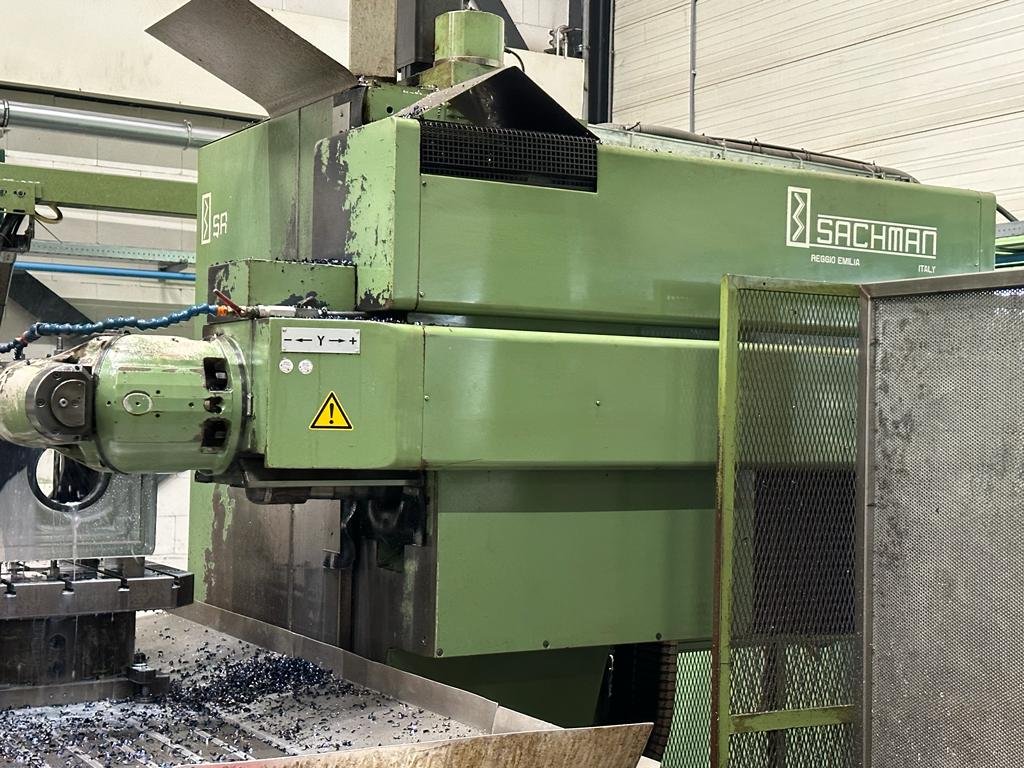

Universal milling head TVK4
Heidenhain HR-410 handwheel
Chip conveyor
Under power inspection possible any time !


X-Axis: 2000mm
Y-Axis: 815mm
Z-Axis: 1037mm
Table Length: 2700mm
Table Width: 730mm
Table load: 4000
Power on spindle: 15kW
Spindle speeds: 4000Rpm
Spindle Taper: Bt50ISO/Bt/Mk
Feed rate X-Axis: 10000mm/min.
Feed rate Y-Axis: 10000mm/min.
Feed rate Z-Axis: 10000mm/min.
Millinghead auto-index:Universal Milling head°
Working hours: 16000H
Length: 6500mm
Width: 3740mm
Height: 2910mm
Weight: 12100kg
