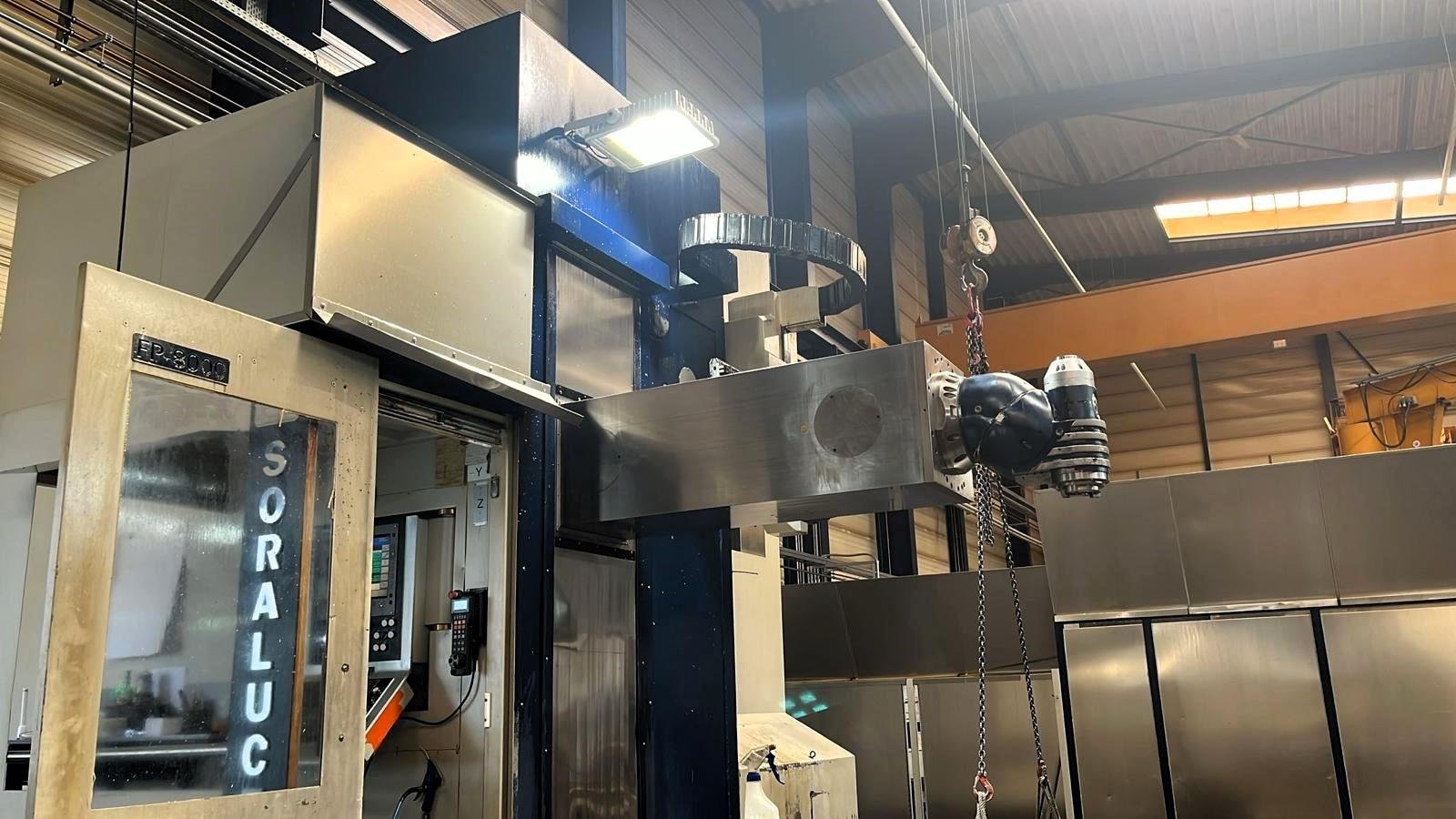

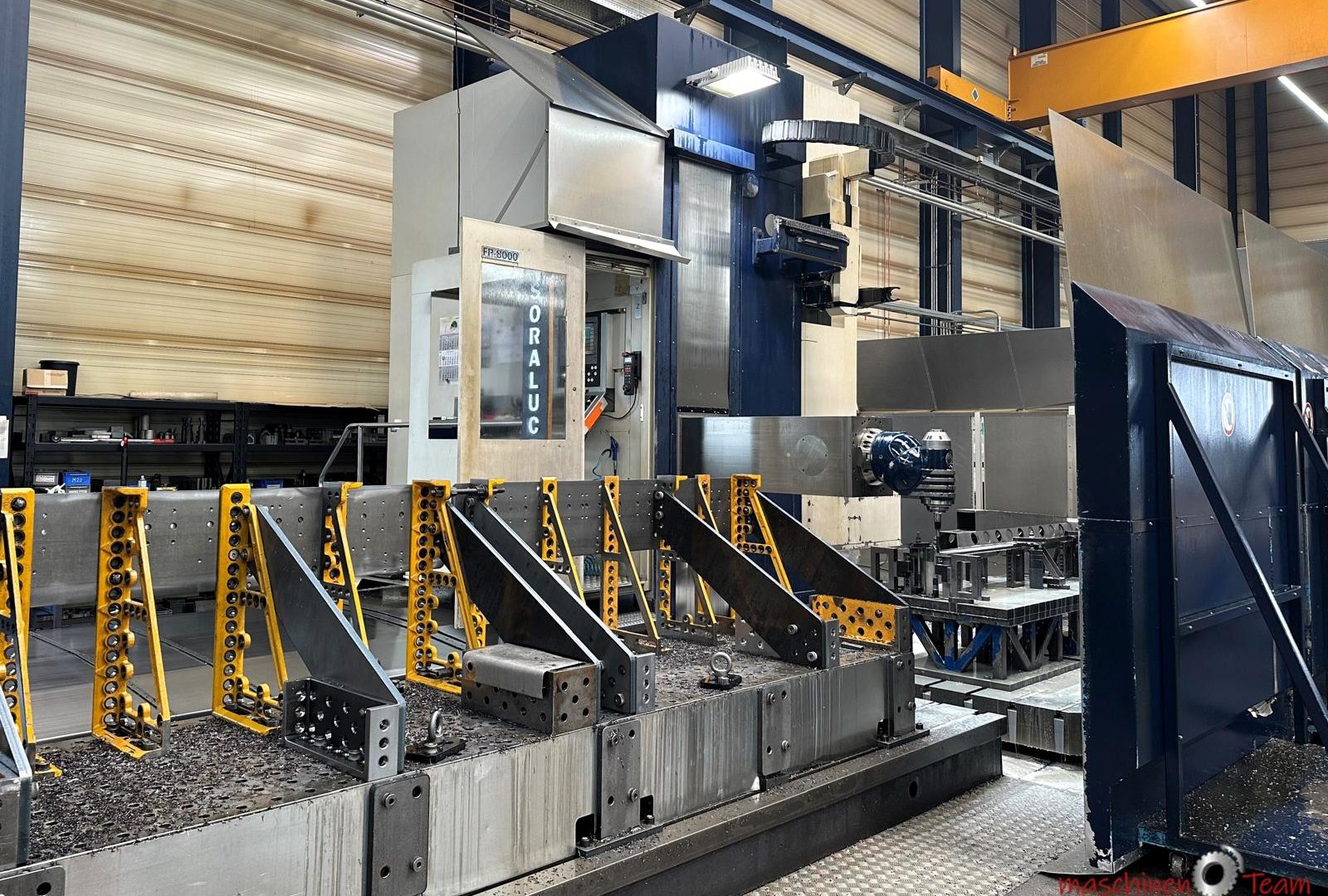

Bed type milling machine
SORALUCE - FP 8000
MACH-ID 8760
Make: SORALUCE
Type: FP 8000

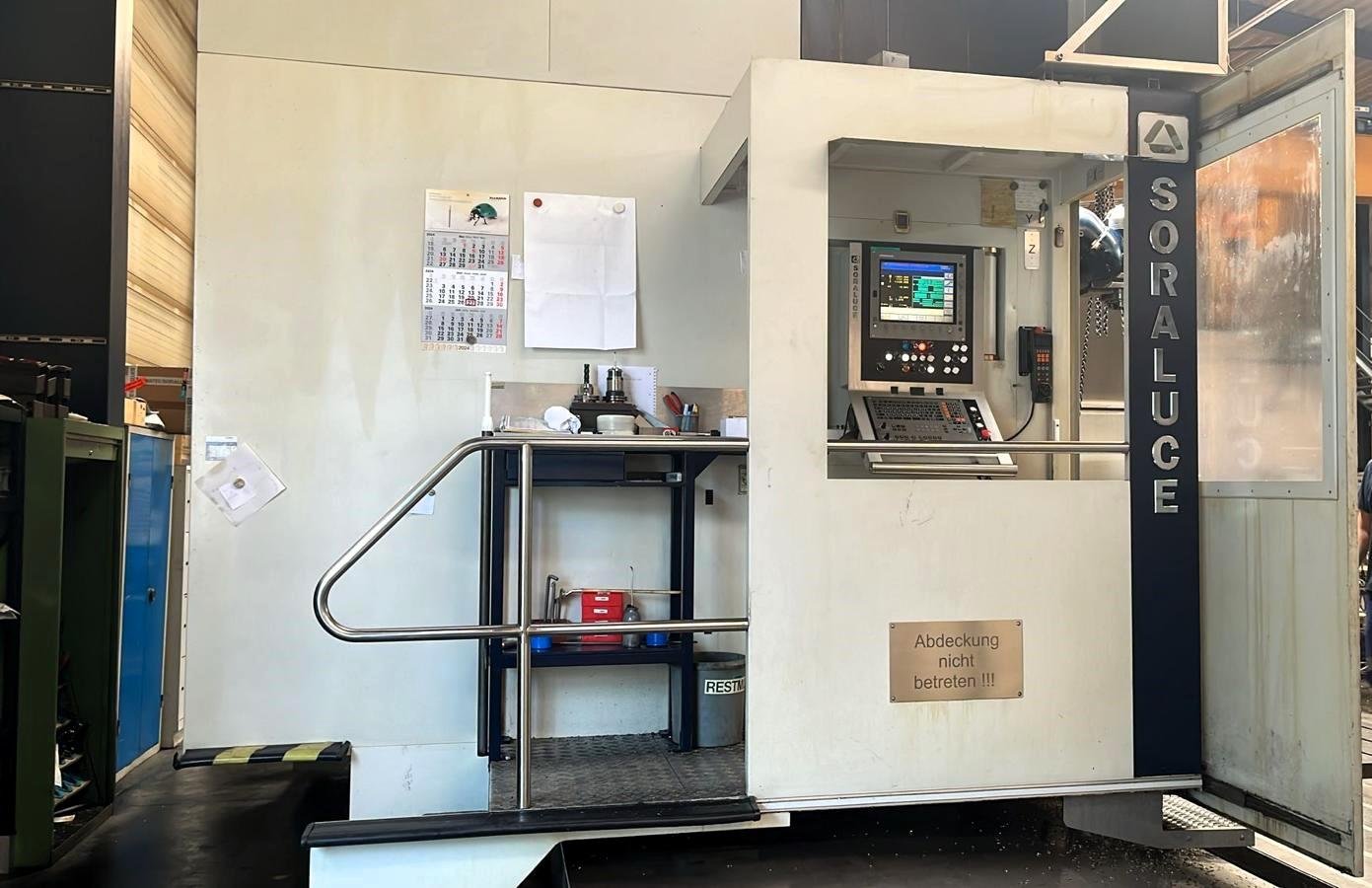

Control: HeidenHain iTNC530
Year: 2012
FP Model ideal for variety of application Medium-Large size Components
Floor type milling boring machine
High dynamics with speeds of 35M/Min
INA linear guiding system
Hydro mechanical clamping slides

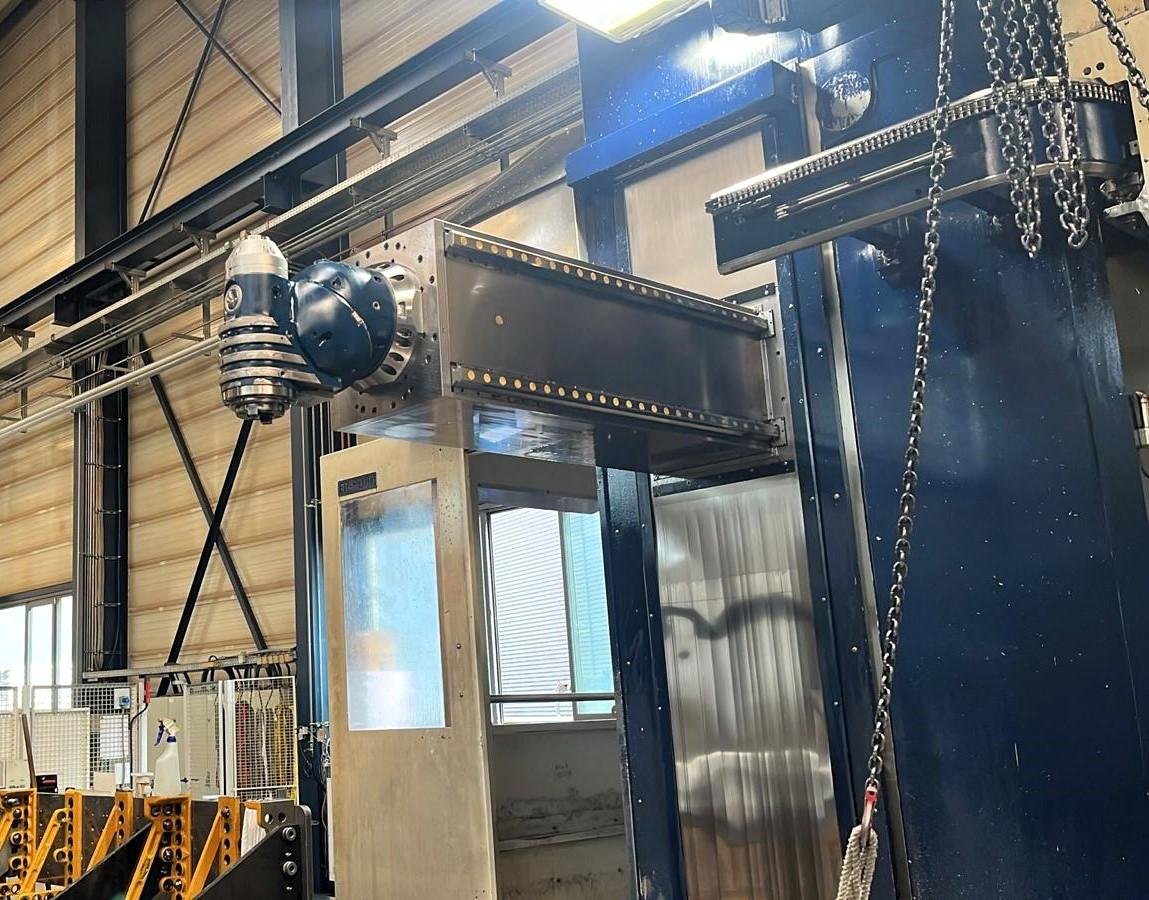

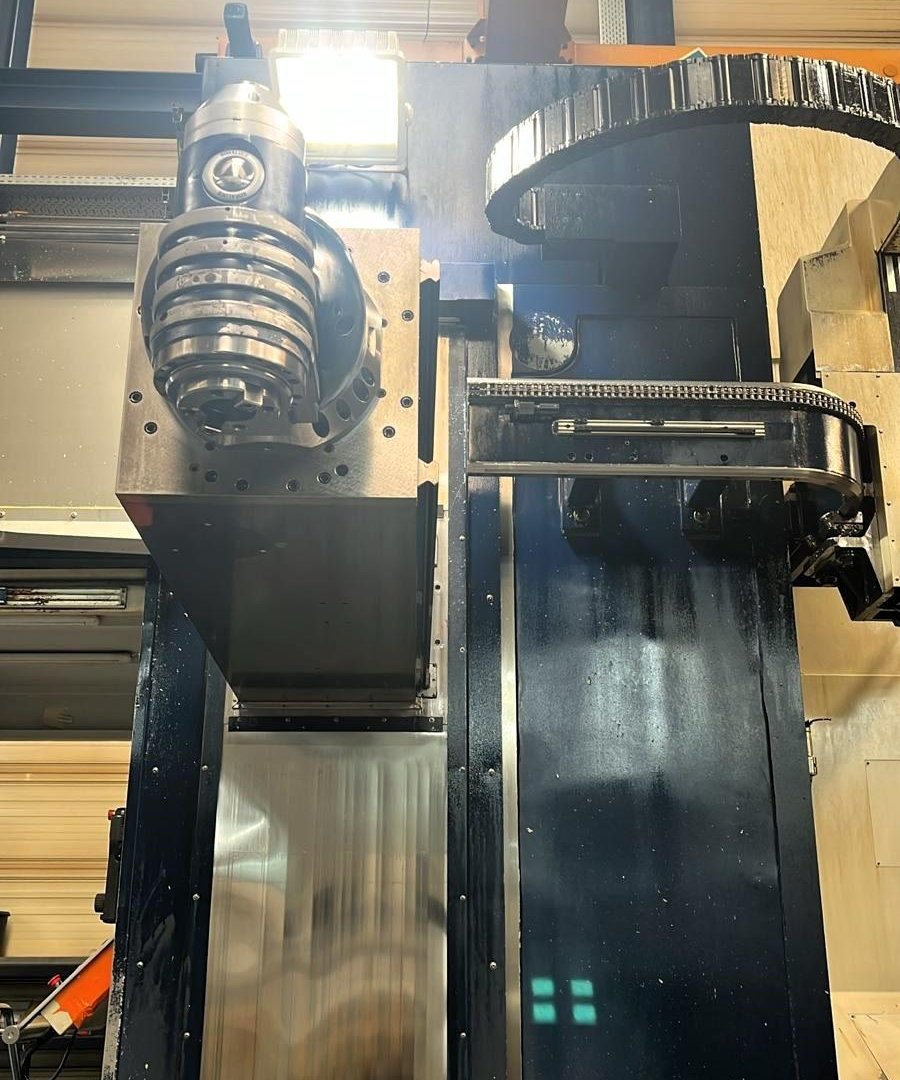

Orthogonal milling head for machining at any desired angle



Rotary table RUCKLE 2500 x 2000 x 20 Ton

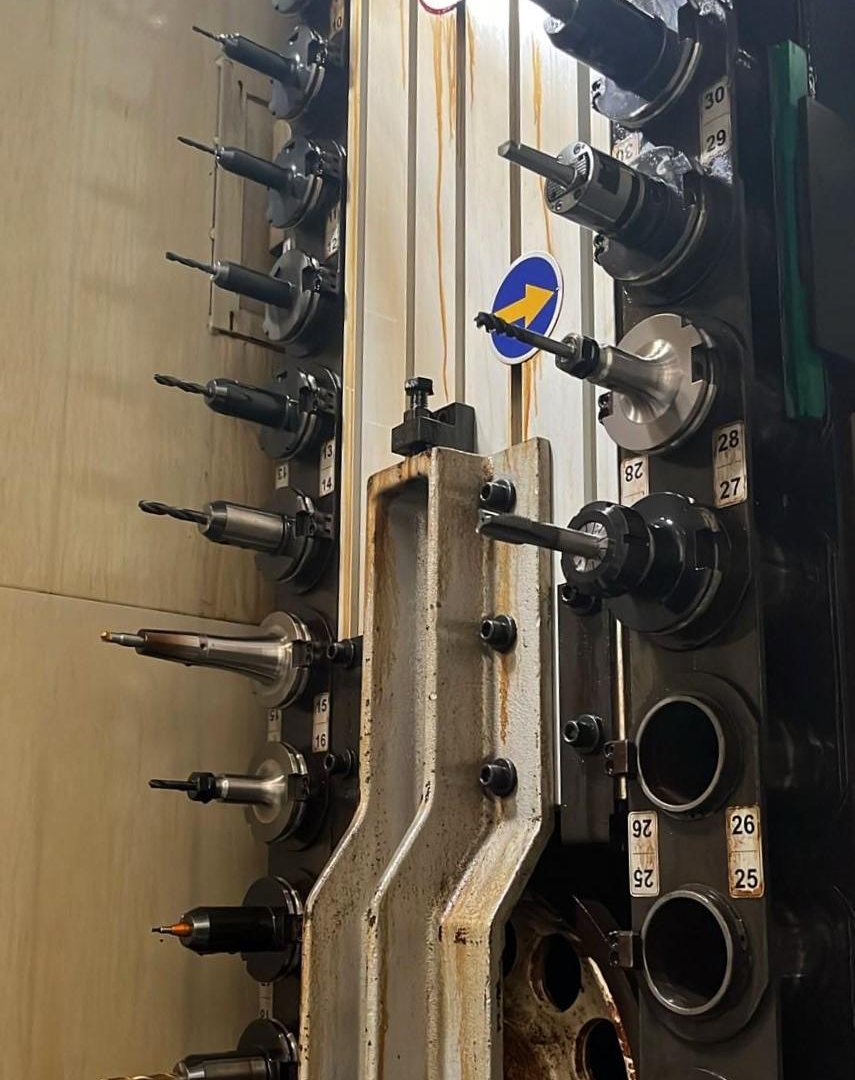

ATC 60 Positions
IKZ 1000 Liter 20 bar
3D measuring probe M&H
Chip conveyor
Under power 10.2024

X-Axis: 8000mm
Y-Axis: 1500mm
Z-Axis: 2600mm
Table Length: 4000mm
Table Width: 2500mm
Table load: 50000
Power on spindle: 43kW
Spindle speeds: 4000Rpm
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis: 25000mm/min.
Feed rate Y-Axis: 25000mm/min.
Feed rate Z-Axis: 25000mm/min.
Millinghead auto-index:2.5 x 2.5°
Length: 14000mm
Width: 7000mm
Height: 4800mm
Weight: 45000kg
