Description:

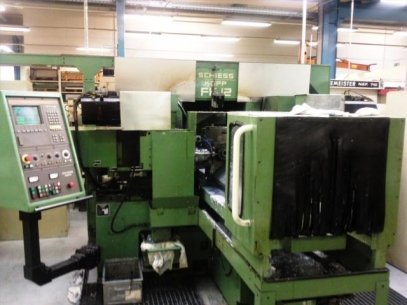

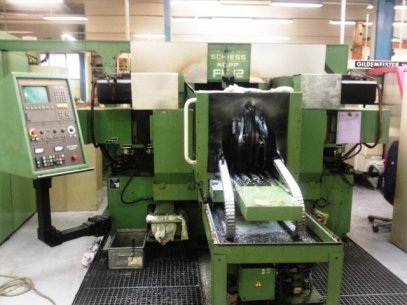

CNC thread milling machine with 4th axis make SCHIESS-KOPP, model FK 12.32 CNC
Specifications:

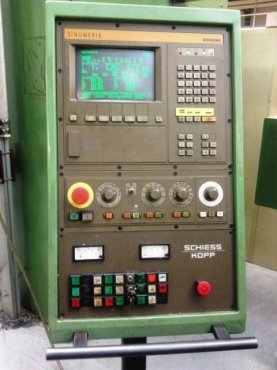

YOM 1990, 2 x ISA 40, column movement 200 mm, stroke of tool slide 120 mm, stroke of workpiece slide 810 mm, workpiece length max. 830 mm, distance of spindles 135 mm, centre height 260 mm, tailstock quill stroke 100 mm, milling head speed 100 – 4500 rpm., with SIEMENS-control SINUMERIK 810/820, acc.: NC-dividing unit with back stop, various toolholders, steadies, running centres, coolant
Dimensions:
approx. 3,20 x 2,66 x 1,76 m
Weight:
approx. 6,5 t
