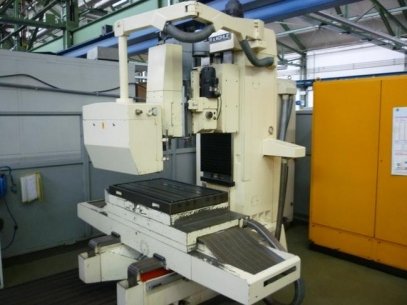

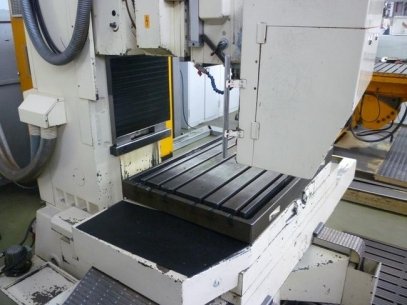

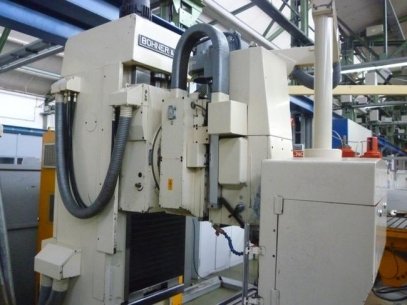

Machine weight: about 6 t space LxWxH: Incl. an extensive milling / drilling package z.T. with internal cooling, as well as a range of ISO 50 shots. The machine has yet to fully machine documentation. Specifications: Arbeitsbereicht: Worktable L x W: 1000 x 630 mm width x number of T-slots: 6 x 18 mm max. Feed paths: longitudinal movement of the table (X axis): 1000 mm Qürbewegung of the table (Y-axis) 600 mm circular movement of the table (C axis): 360 degree vertical movement of the boom carriage (Z axis) 550 mm vertical movement of the Frässchlittens (W -axis) 300 mm Milling head tilts to each side: 90 degree radius of the milling spindle: 660 mm Maximum workpiece during milling round: 1100 mm Max workpiece height: 600 mm max. Table load: 2000 kg feed table length and Qürbewegung (X-, Y-axis) Electromechanical (continuously variable): 4 - 1600 mm / min rapid traverse: 5 m / min Slow speed: 4 mm / min table rotary motion (C-axis) Electromechanical (continuously variable) at 500 mm: 4 - 1600 mm / min rapid traverse: 5 m / min Slow speed: 4 mm / min boom vertical movement (Z axis) Electromechanical (continuously variable) 4 - 1600 mm / min rapid traverse: 3.75 m / min sliding speed (infinitely variable) 4 mm / min Frässpindelschlittenbewegung (W-axis) Electromechanical (infinitely adjustable) 3 - 670 mm / min rapid traverse 1000 mm / min Slow speed: 3 mm / min milling spindle: speed range: 45-3550 U / min infinitely variable speeds within 3 Sc
