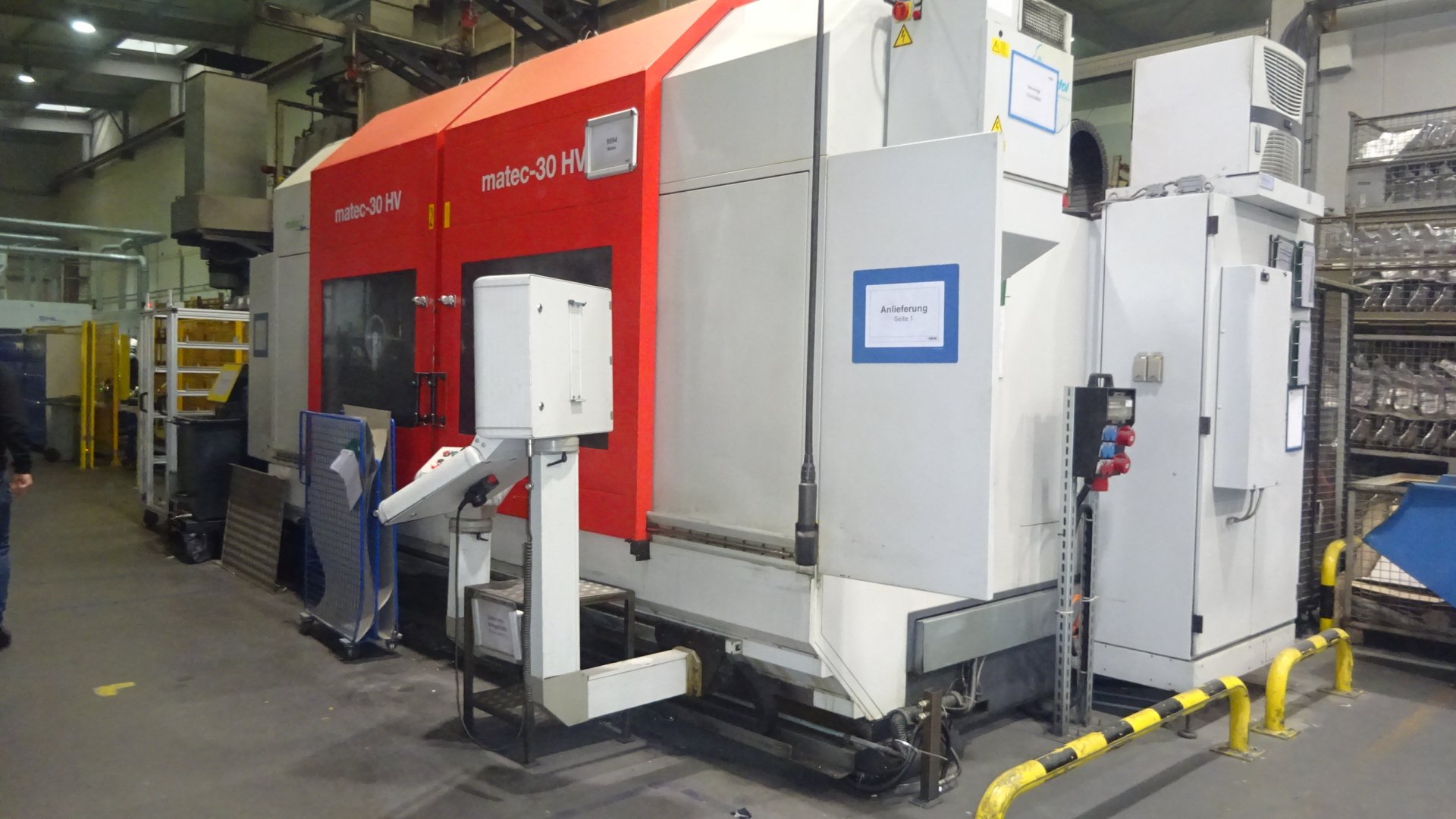

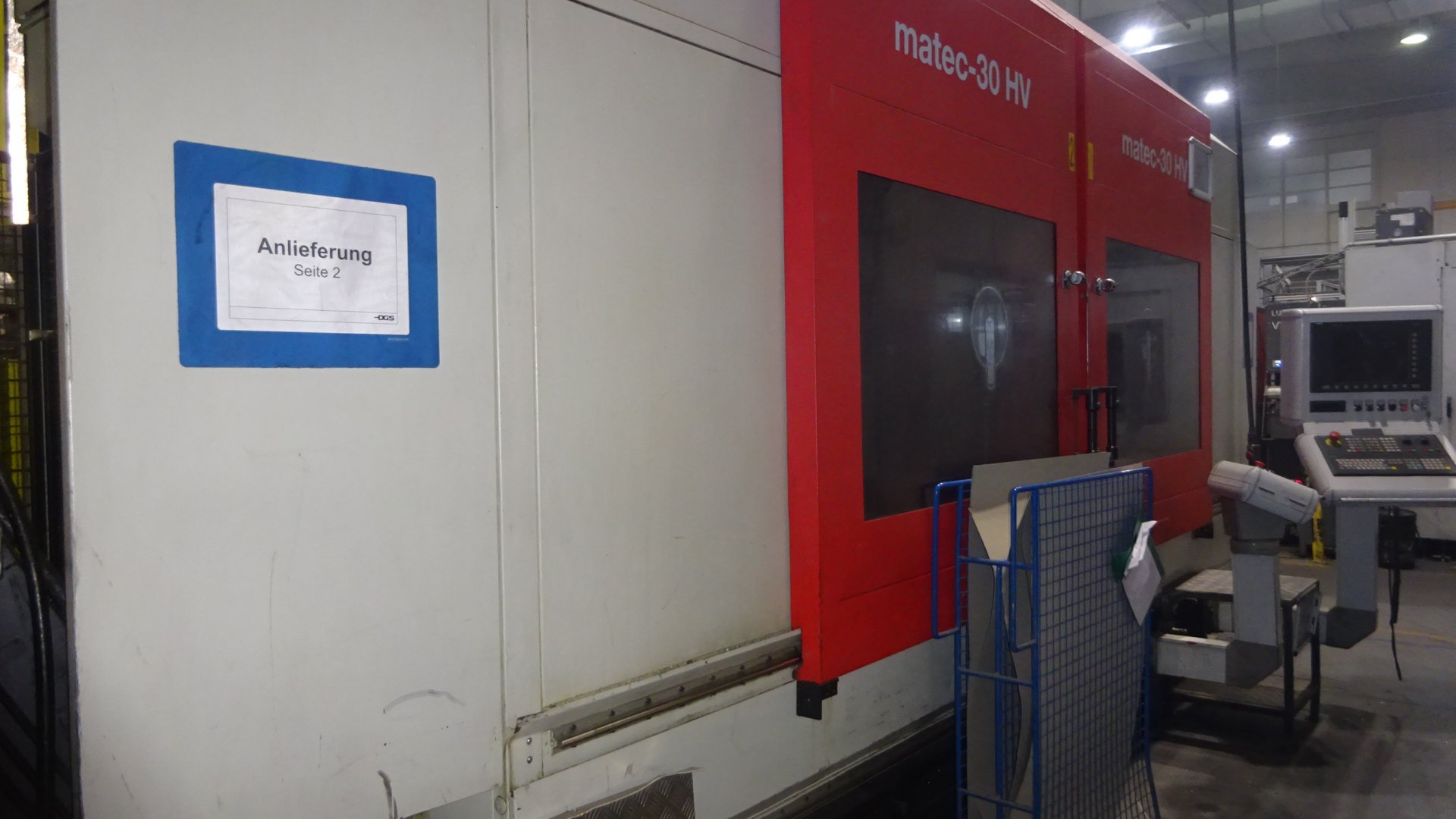

MATEC, 30 HV, UNIVERSAL, MILLS

Condition:Used
Category:MILLS
Type:UNIVERSAL
Manufacturer:MATEC
Model:30 HV
YOM:2008
Location:Netherlands, BABBERICH
Price:On request
Stock No:7050

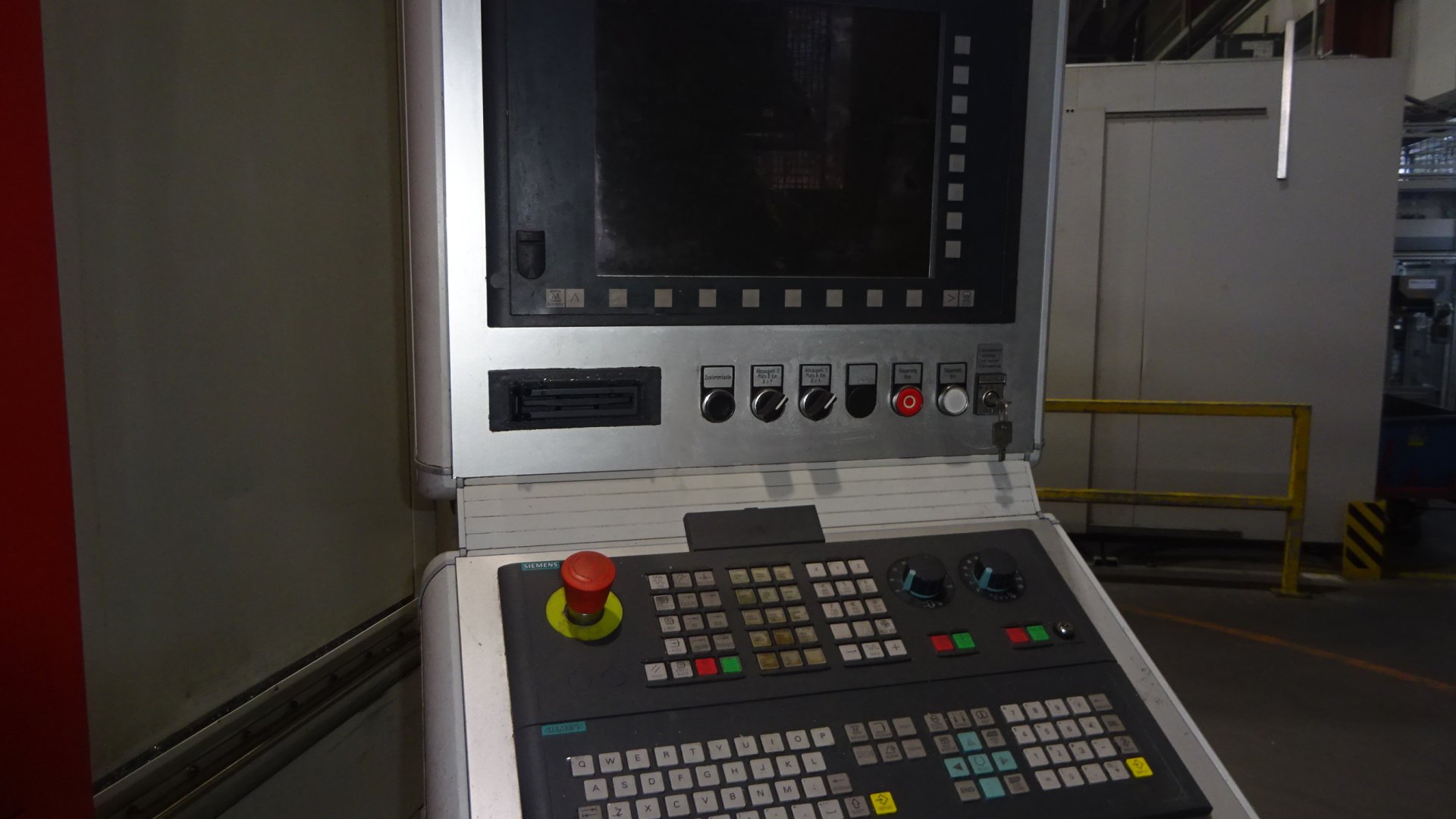

Control:CNC
ID:AS29279

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

X - Travel: 3000mm
Y - Travel: 1000mm
Z - Travel: 1000mm
A - Axis: 105°
B - Axis: 360000°
Table Length: 3500mm
Table Width: 835mm

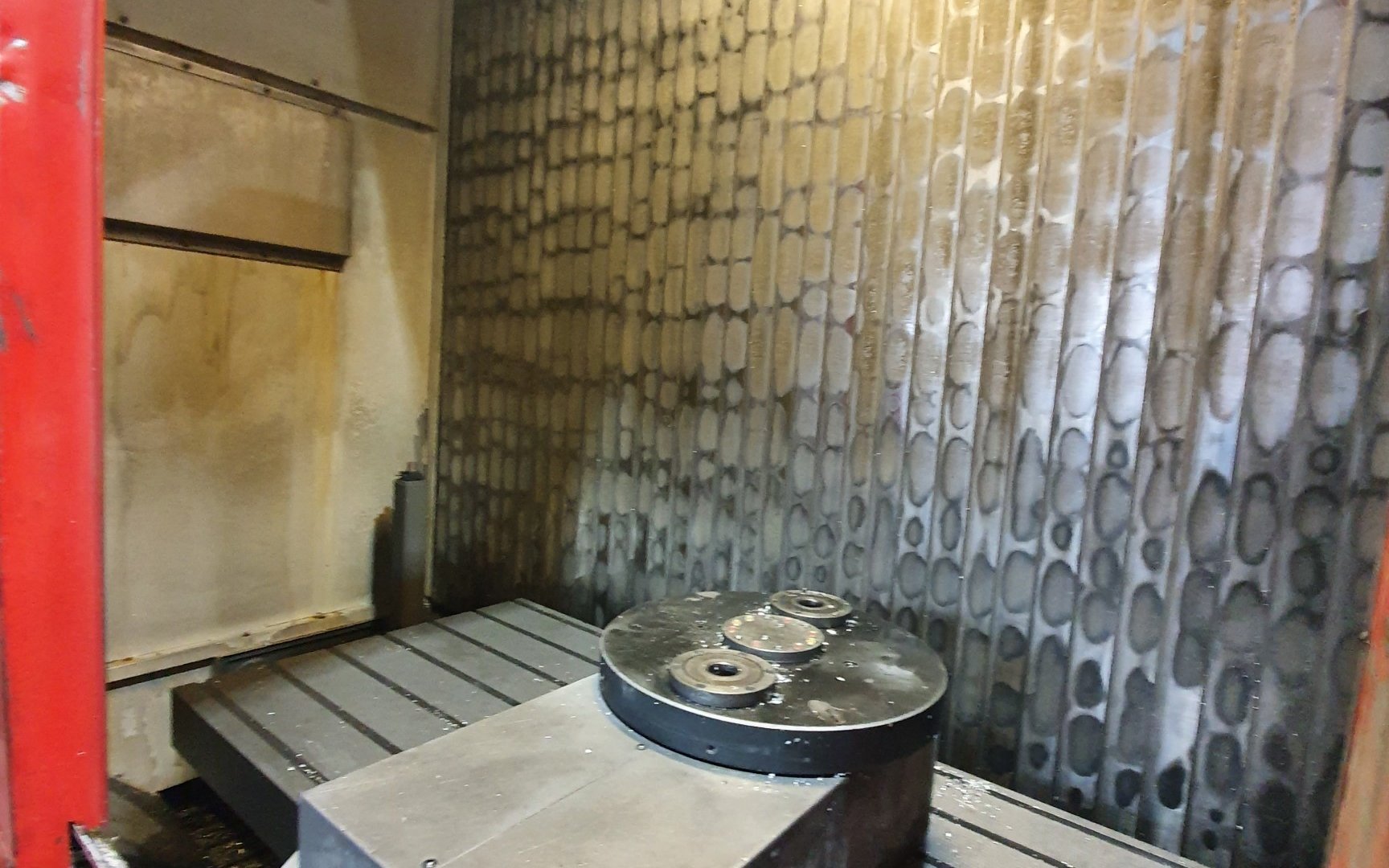

Table Ø: 500mm
Feed rate X-Axis: 30000mm/min.
Feed rate Y-Axis: 30000mm/min.
Feed rate Z-Axis: 30000mm/min.

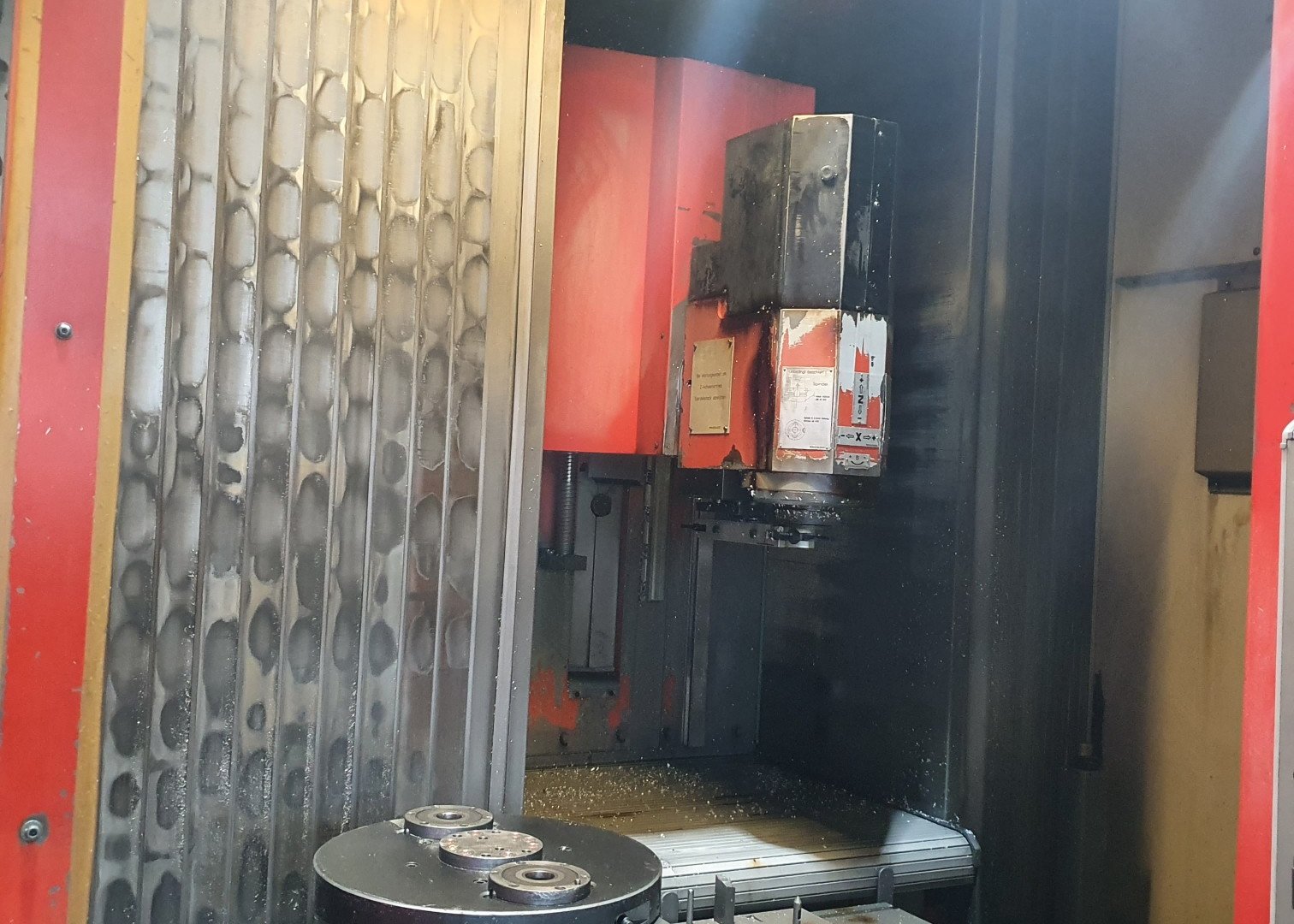

Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 16kW
Speeds / ranges: 9000Rpm
ATC / revolver: 36
Coolant true spindle / Bar:10
Number of controlled axis:5
Chip conveyor: yes
Coolantsystem: yes

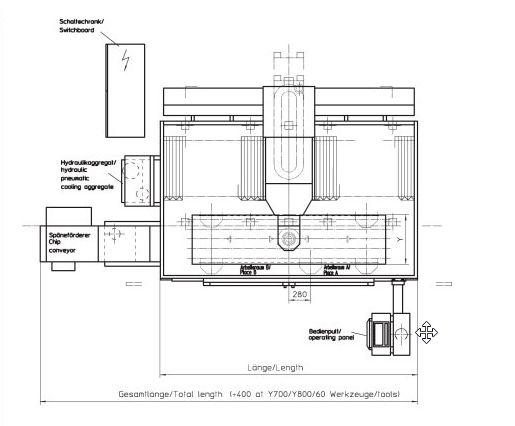

Length: 8000mm
Width: 3500mm
Height: 3200mm
Weight: 10400kg

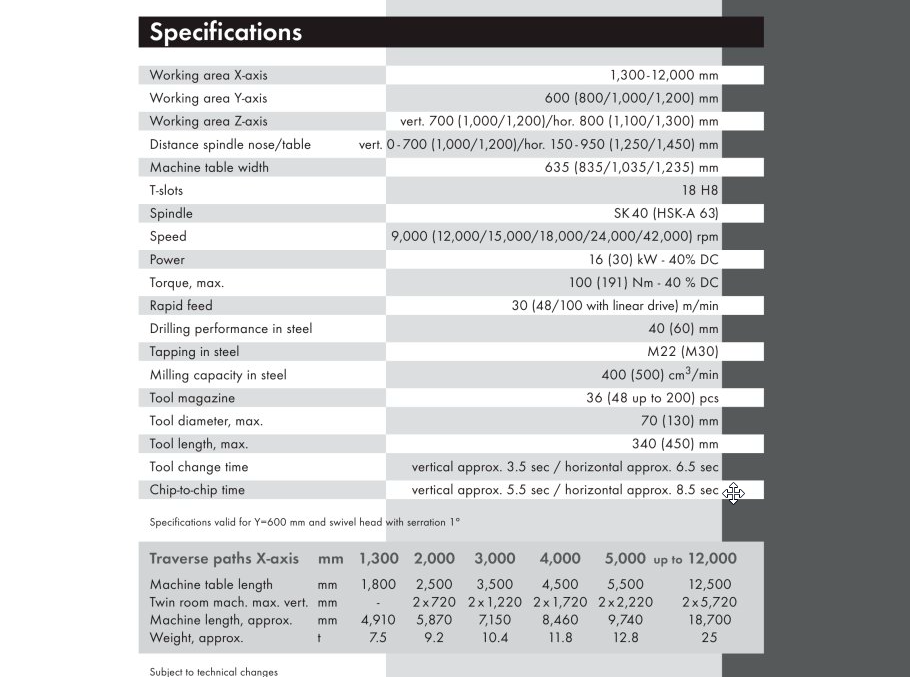

Specifications:

X - Travel: 3000mm
Y - Travel: 1000mm
Z - Travel: 1000mm
A - Axis: 105°
B - Axis: 360000°
Table Length: 3500mm
Table Width: 835mm
Table Ø: 500mm
Feed rate X-Axis: 30000mm/min.
Feed rate Y-Axis: 30000mm/min.
Feed rate Z-Axis: 30000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 16kW
Speeds / ranges: 9000Rpm
ATC / revolver: 36
Coolant true spindle / Bar:10
Number of controlled axis:5
Chip conveyor: yes
Coolantsystem: yes
Length: 8000mm
Width: 3500mm
Height: 3200mm
Weight: 10400kg

Dealer name:

Mach4Metal Netherlands, Babberich
