Stock-No. 1106-FR64
Type of machine Milling Machine - Vertical
Make WMW KARL MARX STADT
Type FQW 400 CNC- H
Year of manufacture 1985
Type of control CNC
Storage location Pagus NL. Jena Germany
Country of origin Germany
Specifications:
Technical details
x-travel 1190 mm
y-travel 530 mm
z-travel 415 mm
feed stepless li, qu = 3......5000 mm/min
feed stepless senk. 1,5 ........2500 mm/min
rapid traverse li, qu = 10000 mm/min
rapid traverse senk. 5000 mm/min

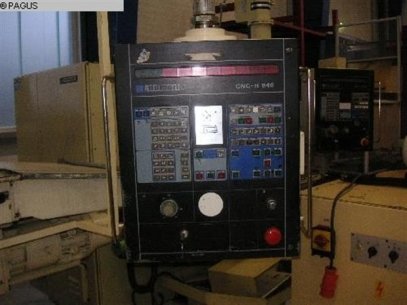

Control Numerik CNC-H 646
work table: 1600 mm x 480 mm
table load 1500 kg
spindle speed: 18
turning speeds: 35,5 - 1800 U/min
power capacity - milling spindle 15 kW
total power requirement 23 kW
weight of the machine ca. 5500 kg
dimensions of the machine ca. 3000 x 2600 x 2520 mm
