Description:

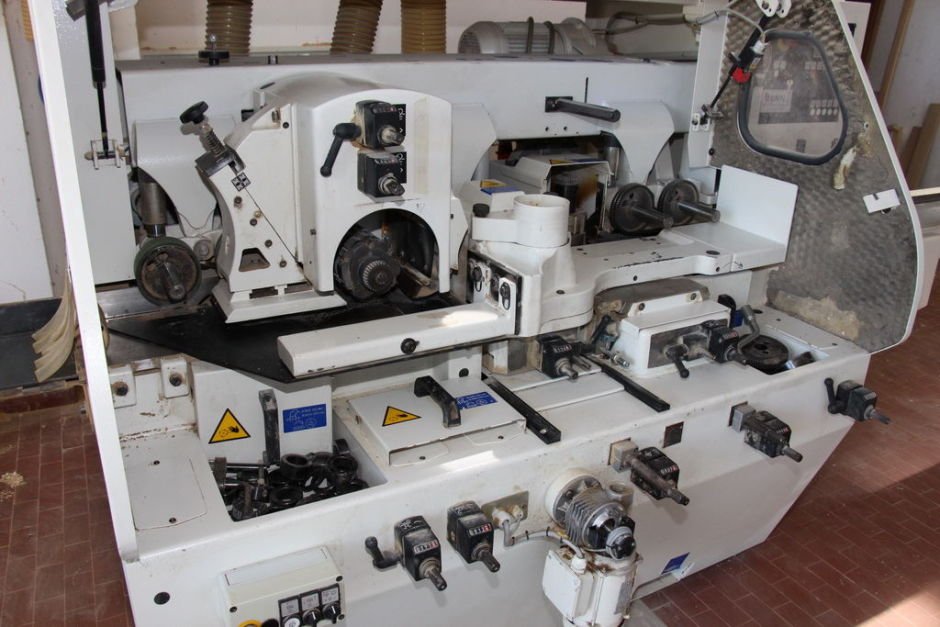

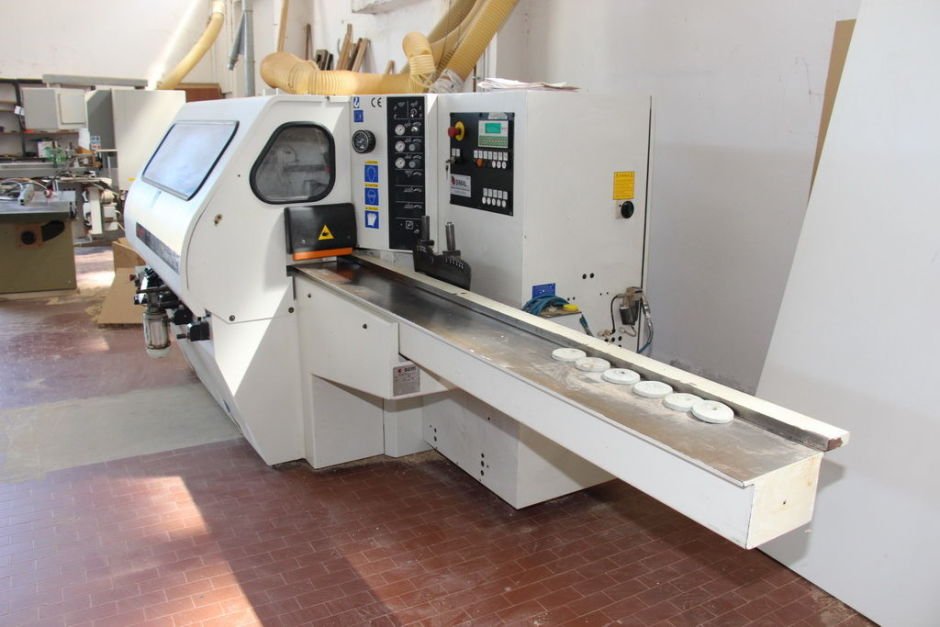

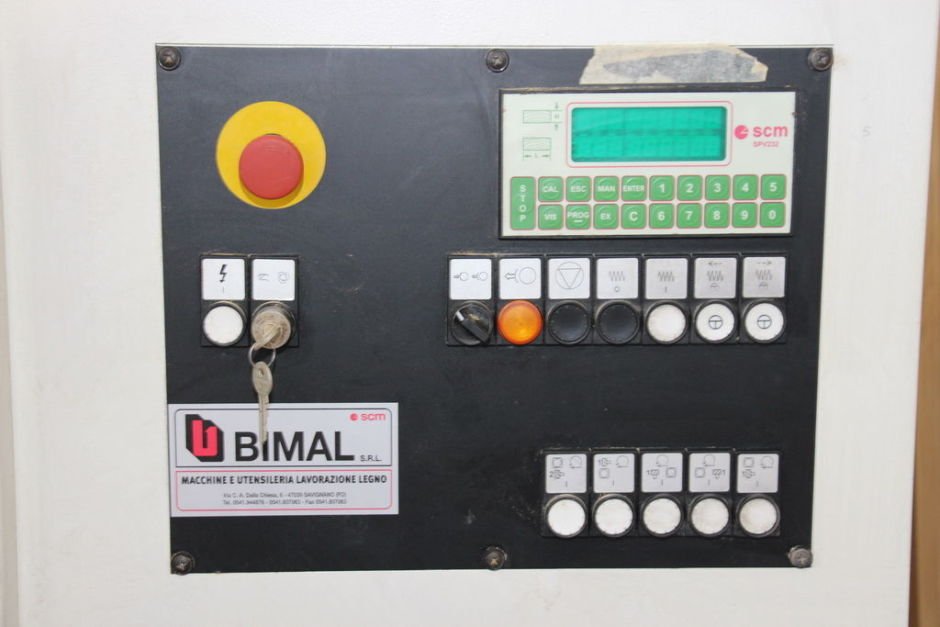

2002 Scm SupersetXL Moulder,machine composed of 5 shafts: 1st lower horizontal shaft, 2nd vertical right shaft, 3rd vertical left, 4th upper horizontal, 5th lower horizontal. Motor power approx. 4 Kw each, infeed table 2300 x 235 mm approx., max. working width 230 mm, min. working width 25 mm, max. working height 120 mm, min. working height 6 mm, min. lenght single piece 620 mm, feed rate 5/25 m/min, shafts speed rate 6000 rpm, shafts diameter 40 mm, usefull vertical shafts lenght 140 mm, usefull horizontal shafts lenght 250 mm, universal shaft lenght 240 mm, min. and max. profiling tools diameter 100-200 mm, min. and max. tool diameter on planer shaft 120-140 mm. Series SEPRI SP232 SCM Control.
Dimensions (l x w x h) approx.4,200 x 1,700 x 1,800 mm
Weight approx.2,500 kg
Specifications:
machine composed of 5 shafts: 1st lower horizontal shaft, 2nd vertical right shaft, 3rd vertical left, 4th upper horizontal, 5th lower horizontal. Motor power approx. 4 Kw each, infeed table 2300 x 235 mm approx., max. working width 230 mm, min. working width 25 mm, max. working height 120 mm, min. working height 6 mm, min. lenght single piece 620 mm, feed rate 5/25 m/min, shafts speed rate 6000 rpm, shafts diameter 40 mm, usefull vertical shafts lenght 140 mm, usefull horizontal shafts lenght 250 mm, universal shaft lenght 240 mm, min. and max. profiling tools diameter 100-200 mm, min. and max. tool diameter on planer shaft 120-140 mm. Series SEPRI SP232 SCM Control.
Dimensions:
approx.4,200 x 1,700 x 1,800 mm
Weight:
2,500 kg
