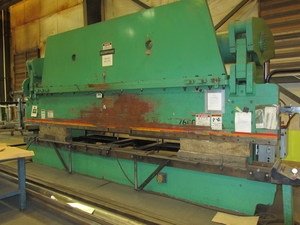

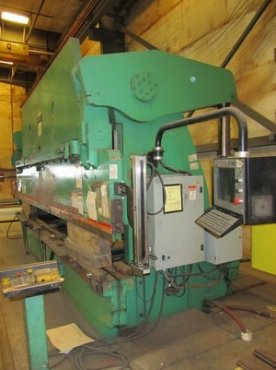

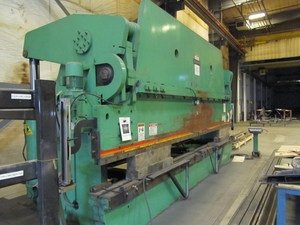

Rebuilt 2008 with PC800 2 axis CNC Control, Laser Lite Light Curtain, Crowning, 4 way die, tooling.
Specifications:
Brake was rebuilt in 2008 with 2 Axis (XY) PL800 Bendwizard CNC Control, the hydraulic system rebuilt including the cylinders. Hydraulic Safety Valves (prevent ram from ever dropping unintentionally) and Lasersafe Safety Curtains.
Specifications:
Capacity 600 Ton
Bed Length 240"
Distance Between Housing 198"
Bed Height Above Floor 38"
Stroke 12"
Open Height 24"
Closed Height 12"
Throat Depth 12"
Speed Fast Approach 50 IPM
Speed Slow Bend 14 IPM
Speed Fast Return 79 IPM
Motor 60 HP 440/3

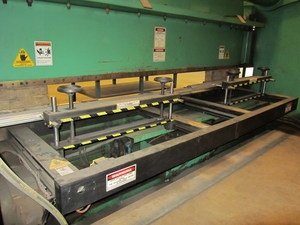

CNC Backgauge Travel 27"
Projection Below Floor 50"
Size 246"LR x 80"FB x 140" H
Weight 93000 LB
Hydraulic Reservoir Capacity 90 Gallons
Equipped With:

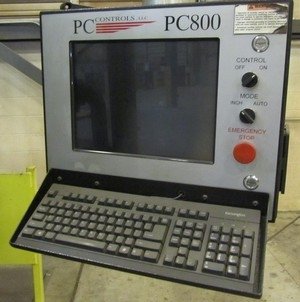

PC800 CNC Control

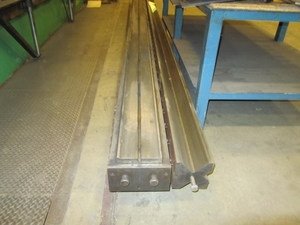

4-Way Die
Crowning Type Die Holder
(4) 20' Punches
LaserLite Curtain
Books and Manuals
