A reputation for very high precision.

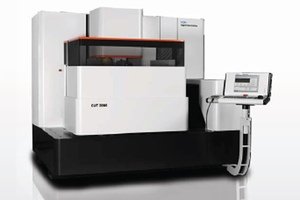

The machining precision is the result of a set of technical choices, such as the mechanical concept, the machining process, and wire guidance. Each element composing the CUT 3000 has been thought through and implemented in the smallest details, with the sole objective of ensuring high precision for the entire lifetime of the machine.
More and more, tools require the use of wires of very fine diameters. The CUT 3000 range has been designed to meet this challenge. They machine with wires as small as 0.05 mm (0.002 in) in diameter.
Quality of the Ra 0.05 μm (2 μin) surface: a critical asset for tools of high requirements
The surface quality is an important parameter for good functioning of precision tools. This is why the CUT 3000 IS designed to achieve and finishing quality up to Ra 0.05 μm (2 μin).
Specifications:
Key Points
* Windows XP control delivers efficiency through simple, easy to use setup and programming displays. The control architecture is designed specifically for EDM users that do not have the time or resources to become wire EDM Experts. It's the perfect choice for standard wire EDM needs.
* IPG-V Generator utilizes Swiss design and technology and delivers a finer spark gap for better part geometry and surface finish.
* Low-maintainence, reliable automatic wire threading system boosts autonomy and reduces operating cost.
* Machine is equipped with .010" wire guides. Wire guides are also available in .006", .008" and .012". Additionally, a .004" wire kit can be purchased.
* With the integrated SF module, surface finishes of 0.25 Ra can be obtained.
* Intuitive multi-function handbox for set up functions, axis movements, cycle start/stop and emergency stop.
* Solid Structure for reliable operation. The T-shaped cast iron base frame permits the loading of larger workpieces without comprimising accuracy.
* Four sided hardened table with universal clamping frame.
* The X and Y axis incorporates linear scales and encoders to ensure greater positioning accuracy and repeatability.
* AC Cam Easy on-board CAM system provides an easy and convenient way to generate 2D geometries for erosion.
* Full time collision protection on the X,Y and Z-axis prevents damage in the event of an accidental movement on to the work piece.
