Programmable CNC High Speed Electrical Discharge Drilling Machine

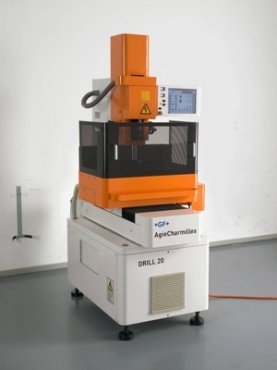

The GF AgieCharmilles Drill 20 CNC high speed electrical discharge drilling machine with multiple point drilling capacity and automatic wear compensation.
Specifications:
Key Points
* Multiple point EDM hole drilling with integrated rotating spindle allows automated erosion of holes at multiple locations with minimal intervention.
* Windows Operating System with 12.1" touch screen interface and display. Separate pages for machine setup, job creation, process optimizer and diagnostics.
* USB and LAN port for fast and reliable job transfer. File import from TXT, Job program from PC simulator or G-Code ISO from AgieCharmilles Cut 20/30 WEDM systems.
* Automatic edge find/center find/corner functions. Program check and job simulation with axis movement.
* High pressure pump that uses ordinary water with no messy additives.
* 40Gb hard disk capacity for expansive program storage.
* Stainless steel table and work pan.
* 17 Electrode Guide Sets for 0.3 to 3.0 mm diameters. Seal glands for 0.5-1.0, 1.0-2.0, 2.0-3.0 mm diameters. Keyless chuck on spindle eliminates need for special collets.
* Automatic electrode wear compensation.
* On-board technology includes steel, carbide, aluminum, copper and brass.
