Ease of use combined with outstanding performances

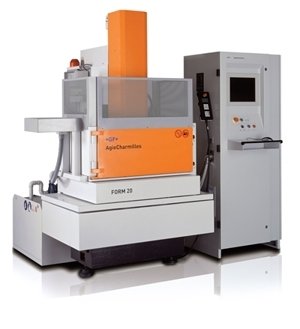

GF AgieCharmilles is pleased to offer the FORM 20. Designed from inception to be the simplest and fastest system to install, operate and achieve productivity goals. The know-how incorporated in this CNC die-sinking EDM system is based on the over 50 years of EDM excellence and more than forty thousand EDM systems delivered worldwide by GF AgieCharmilles. The FORM 20 offers a tremendous price/benefit ratio with powerful EDM capabilities and features so easy to access that everyone in your shop will want to operate it.

Key Points

* Mechanical design based on tried and tested C-frame construction. Column, table and quill are made from ultra rigid cast iron to gaurantee stiffness and optimised thermal stability.
* The APG (Advanced Power Generator) is a high efficiency, high output 72 Amp generator that delivers speed, consistency and precision. Just 3.7 kW/hour of power consumption can be expected at full power.
* Integrated tool capacity for 4 positions.
* Integrated C-axis with either a System 3R Macro, Macro/Combi or a Erowa ITS 50 automatic chuck. PLease select chuck type from option list .
* Microsoft® Windows® XP operating system that employs a simple conversational programming design.
* Data Networking. The system can be easilty integrated in to a data network via LAN, for remote monitoring and data management.
* A unique manual positioning mode lets you erode simple jobs without time-consuming CNC programming.
* A 2.5 kW chiller is included to maximize repeatability and precision.
* Fine Drill option is available for the erosion of small holes using electrodes as small as .004".
