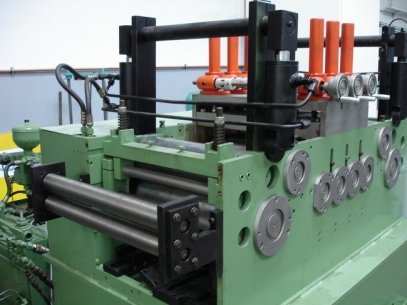

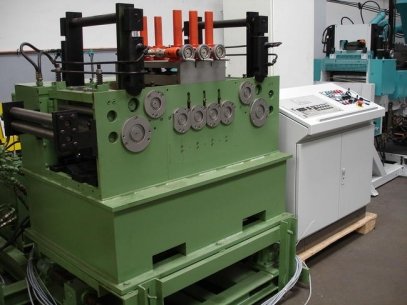

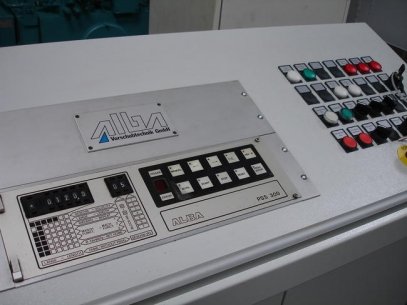

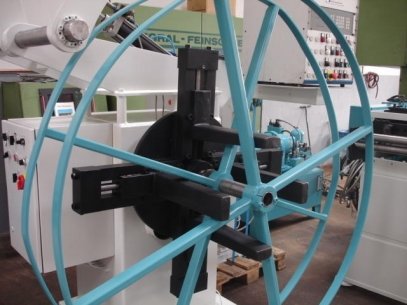

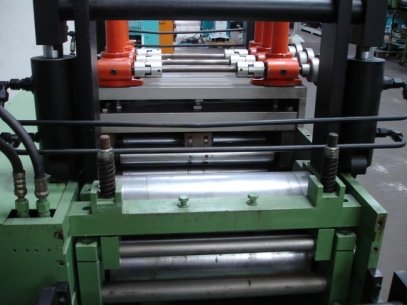

Feed leveler hydraulic - power system feed-directional unit BW 110 cc with height adjustment by screw jacks uncoiler with pressure roller mill ventilation H + L Technical Data Hydraulic overall system 7.5 kW generator tank capacity 200 liters pressure 120 bar construction steel welded structure rolls hardened polished chrome A + outfeed rollers 2 each roll diameter 120 mm Rapid hydraulic supported ventilation band width 400 mm Thickness 0.8 4.0 mm Bandqürschnitt 1200 square meters 7 pieces straightening rollers roll diameter 60 mm feed accuracy is not adding + to _ about 0.05 mm inlet side from left to right color RAL 6011 green height adjustable base frame screw jacks + - 75 mm, new electrical panel freestanding Schrittmotorsteürung decade to enter production at all eccentric stamping presses hydraulic presses
