138 ton x 122" , Up-acting hydraulic, 8 Axis NC9-FS control

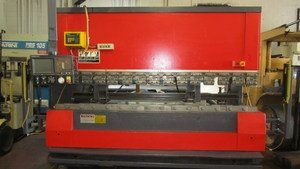

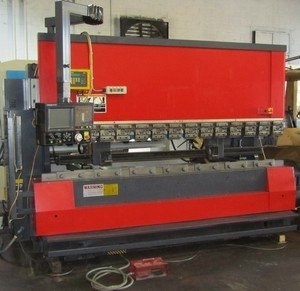

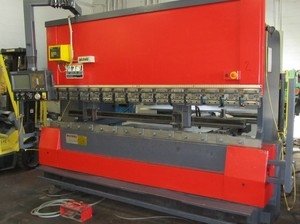

138 ton AMADA FBD-1253 Upacting 8 Axis CNC Press Brake
Model: FBD1253 S/N: Year: 1995
Condition: Very Good

Specifications:
Capacity 138 US Ton, 125 Metric Tons
Bed Length 118.1" (3000mm)
Max Bending Length 122" (3100mm)
Distance Between Uprights 106.3" (2700mm)
Throat Depth 15.75" (400mm)
Length of Stroke 5.91" (150mm)
Open Height 16.54" (420mm)
Lower Beam Rising Speed 3.03 in/sec, (77mm/sec)
Lower Beam Bending Speed .31 in/sec, (8mm/sec)
Lower Beam Lowering Speed 3.54 in/sec (90mm/sec)
Motor 14.7 HP 230/460/3
Floor Space 171.7" (4360mm) Length
61.2" (1555mm) width
102.8" (2610mm) height
Weight 19400 LB

Equipped With:

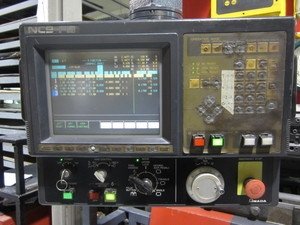

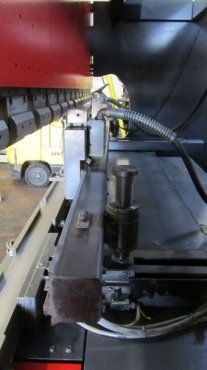

Amada NC9-FS 8 Axis CNC Control. D1, D2, Ram, L, L2, Back Gauge, Z, Vertical Finger
YL, YR, Horizontal Finger, CC Bed Crowning
Simultaneous 8 axis auto operation
Memory Capacity- No. of steps-50 programs, 20 steps (max 500 steps)
Memory Capacity- No. of storage toold- 60 punches, 60 dies.
Feeding Speed D axis 1-77 mm/sec (3.03in/sec)
Feeding Speed L axis 3000mm/sec (1181.10in/sec)
Movable Range D axis 0-150mm (0-5.9055 in)
Movable Range L axis 2-501mm (0.081-19.678in)

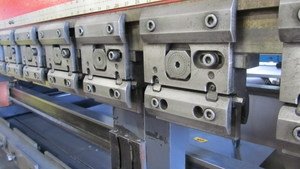

European Tooling Clamps
Flush Floor Mount

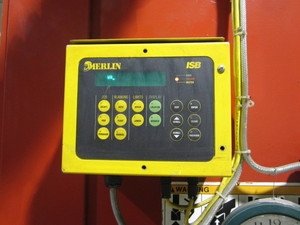

Merlin ISB Light Curtain
Electric Foot Switch
