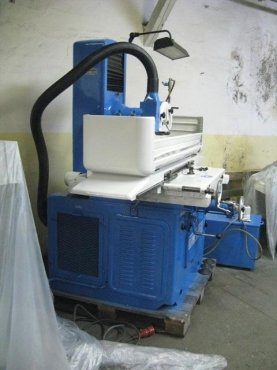

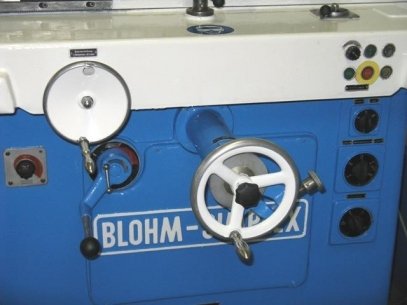

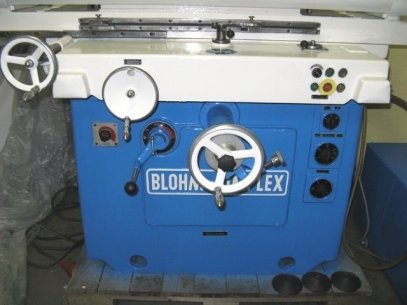

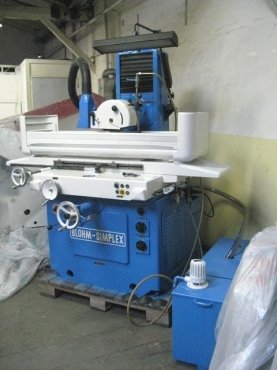

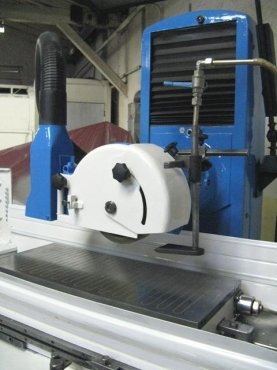

--- We can give nothing but cheap to sell, we do! Please convince yourself that this price is cheap! Make: BLOHM Type: Simplex 7 machine no. 03 730 Year: / 2012 TÃP. Comm Number 3991068/009 Specifications: ⢠Length: 700 mm grinding width: 350 mm Table clamping surface: 1100 x 300 mm table height above ground: 1000 mm Grösstentfernung between table surface and spindle center: 575 mm Table longitudinal movement hydraulically, infinitely adjustable: 2 - 30 m / min. Handwheel, 1 rotation moves around the table: 100 mm Tischqürbewegung automatically, continuously adjustable: 2 - 65mm wheel with an adjustable scale ring and vernier, pitch: 0.02 mm fine-Qürverstellung, pitch: 0.01 mm grinding head-height adjustment knob, split : 0,002 mm adjustable from 0.001 - 0.01 mm tip control, adjustable from 0.001 - 0.01 mm quick adjustment by electric motor: High speed grinding wheel revolutions: 1,400 / 2,800 r / min Grinding wheel diameter: average: 300 mm greatest: 400 mm smallest 165 mm wheel width: average: 50 mm maximum possible: 80 mm Wheel Bore: normal: 76 mm for 127 mm wafer 400 General Specifications Power: 8.0 kW Weight: 2700 kg Footprint: 1.60 B 2.10 x T H x 1.95 m machine color: blue / gray-white, the machine is equipped with: 2 spindle speeds for rapid height adjustment [...Technical data truncated]
