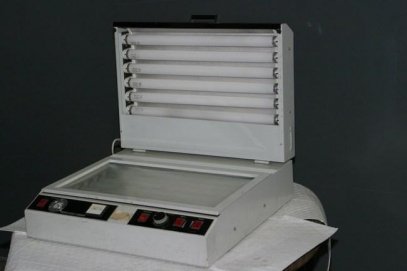

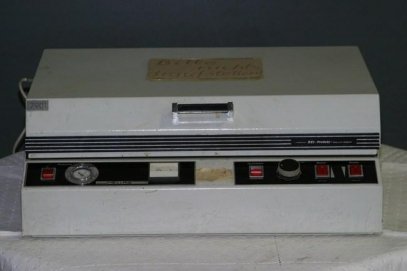

High precision vacuum exposure unit especially designed for double sided contact exposure of presensitized base materials such as tampon printing clichés, PCBs, front-panels, daylight films and other UV sensitive coatings.

Features

2 x 6 superactinic UV -tubes, each 20 W
Special reflectors for minimum undercut
Analogue light emission display
Lower exposure surface from 8 mm special glass
Upper exposure area from structured mylar foil in a sturdy frame
Working area 570 x 300 mm
Suitable for fine-line PCBs

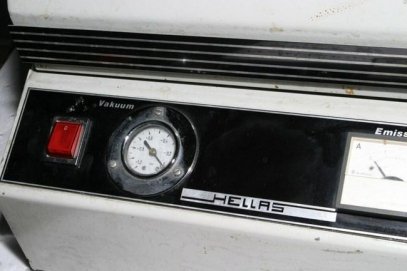

Maintenance-free vacuum (80%) with gauge display, 1380 l/hour continous rating
auto-reset and beeper Built-in cooling fan

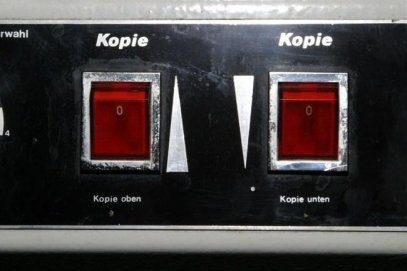

Separate choice of upper/low exposure possible
Sturdy steel housing

Technical Data

Dimensions (L x H x W): 62 cm x 24 cm x 65 cm
Weight: 40 kg
Power supply: 230 V~, 50 Hz, approx. 800 W

-
