Machine Reference nr.: 324
PEELING MACHINE CALOW S-80
TECHNICAL DATAS:
Manufacturer CALOW
Model S 80
Year 1973 - Overhauled on 2016
Working range Ø 30 – 82 mm.
Finishing tolerance H9
Bars length 7 mt. with the current handling situation
Peeling depth 3 mm.
Speed 2 – 13,5 mt./min.
Motor power
182 hp
650 – 1’900 rpm
Tension 380V. 50 Hz.
Specifications:
COMPOSITION OF THE LINE
Loading bench
Feeding pinch-roll

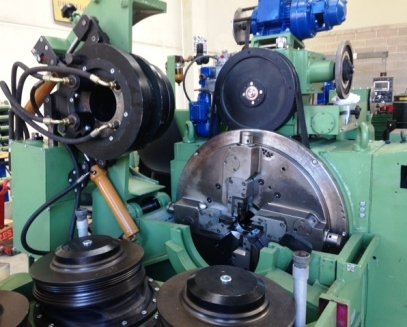

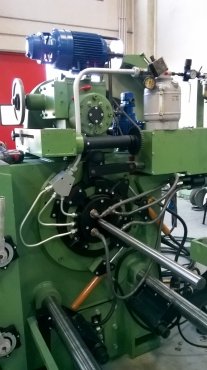

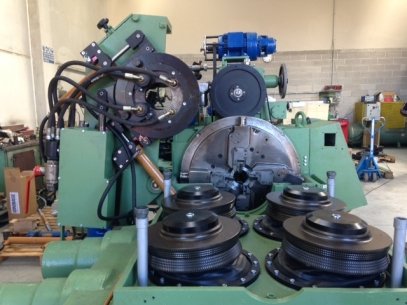

Peeling machine
Exit pinch-roll
Discharging bench
Collecting cradles
Hydraulic equipment

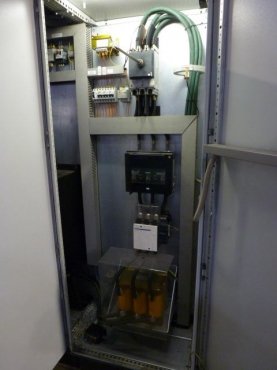

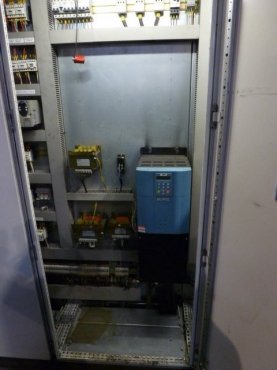

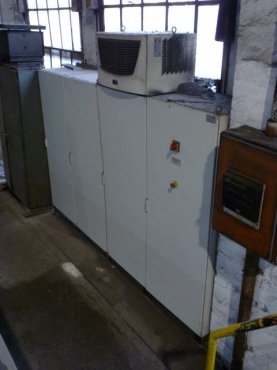

Electric cabinet with SIEMENS PLC S7 new on 2007
Note. The machine is presently under reconditioning
