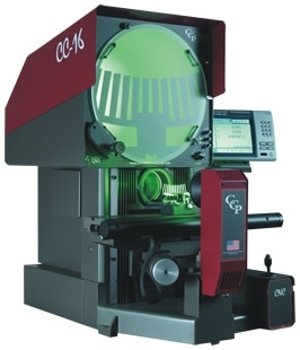

The new CC-16 is the most advanced horizontal benchtop comparator CCP has to offer. Get the new TruLight™ all-LED illumination technology and advanced software to easily measure your parts.
CC-16 offers several standard and advanced options for your application:
* 16" diameter screen
* TruLight all-LED illumination
* Telecentric optics produce upright and reversed images
* Rigid cast base for stability and accuracy
* Motorized system
* Optional eCAD™ electronic overlay package
* Optional EdgeScan™ automatic edge detection for accurate edge measurements
* Optional ImageCapture™

Optical
Mechanical
Illumination (TruLight™)
Optional Software Packages
Power Requirements
XY Scale Resolution
Options
Warranty
Screen Size 16” diameter screen, with integral hood
Screen Type Ground glass with 90° centerlines and clips for mounting standard 16” overlay
charts
Protractor Digital screen display, ±360° readout with 1’ (0.017°) resolution
Optical System Telecentric, horizontal, with upright corrected image, 3.5” constant working
clearance, 10X projection lens
Optional Lenses 20X, 50X, 100X
Lens Mount Internal, manual, with protective lens storage rack
Throat Clearance 10.75”
XY Motion Manual, with quick release X axis and fine adjustment knobs in X and Y
Optional XY Motion Motorized, with variable speed joystick
XY Travel 15” x 6”; focus travel - 2” with precision fine adjustment
Optional Travel Extended X axis travel - 18”
XY Positioning Precision, with heavy duty cast iron substage for vertical motion and focus
control
Worktable Hardcoat anodized aluminum with fixturing slot, 23.20” x 4.75”, 60 lb load
capacity
Helix Motion ±7.5° with pivoting worktable assembly and zero stop
System Dimensions, (approx DWH) Manual systems, 37.7” x 15.7 (31.9” with DRO) x 40.2”
Motorized systems 37.7” x 20.2 (31.9” with DRO) x 40.2”
Weight, approximate Manual, 475 lb; Motorized, 495 lb
1. Profile light, bright green LED, continuously variable intensity
Optional Illumination 2. Oblique (Dark Field), Ringlight with 8 white LEDs, 6 switch-selectable patterns
for effective directional lighting; continuously variable intensity
3. TTL surface, white brightfield, LED coaxial internal, continuously variable
intensity
MeasureFit Plus (requires separate computer);
SmartReport with real-time statistics (requires separate computer);
Quadra-Chek QC Wedge (requires separate computer and Microsoft Excel™)
eCAD™ for electronic CAD overlay & virtual chart system (requires separate
computer)
115 VAC, 50/60 Hz, 1
0.00004”
Adjustable direct projection iris
Digital video screen image capture
External optical edge detection
EdgeScan™ internal automatic edge detection (requires QC-200 or QC-300 DRO)
Fixtures and calibration accessories
Fresnel lens
Glass and plastic overlay charts
Heavy duty steel weldment stand
Service and support contracts
Swing away lamphouse
Full on-site warranty for 1 year. Parts only warranty for second year

Manual, 475 lb; Motorized, 495 lb
