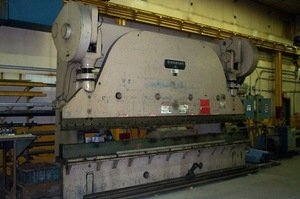

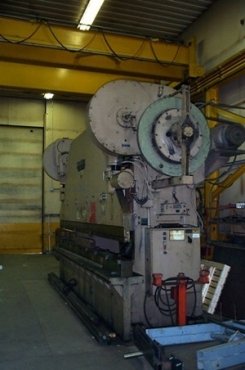

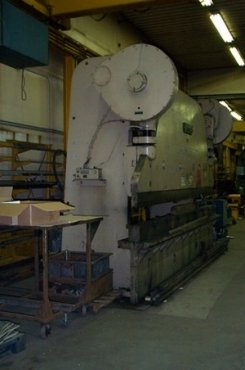

Cincinnati Series 13-12 Mechanical Press brake
new 1966
Manual operated back gauge
Specifications:
Cincinnati Series 13-12 Mechanical Press Brake
YR: 1966
In shop, under power
Condition: Very Good
Capacity:
400 Tons @ botom stroke
260 Tons@ mid-stroke
Bending capacity:
Mild steel: 14' x 3/8", 8' x 1/2"
Distance between housings: 12' 6"
Overall length of bed and ram: 16'
Stroke: 4"
Shut height: 12"
Power ram adjustment: 6 "
Throat depth: 10"
SPM: 30
20 hp motor
Bed and Ram Machined for Removable Angle Brackets
PIT OF 40" required below floor
Equipped with:
MANUAL OPERATED BACK GAUGE
DIE RAIL
SECTIONAL RAM CLAMPS
KEY LOCK FOR PALM BUTTON OR FOOT CONTROL
AIR ACUATED FRICTION CLUTCH
MADISON-KIPP LUBRICATION SYSTEM
16' 4 WAY DIE HOLDER INCLUDED, 1", 2", 3" and 4" openings,
85 DEG. ANGLE
