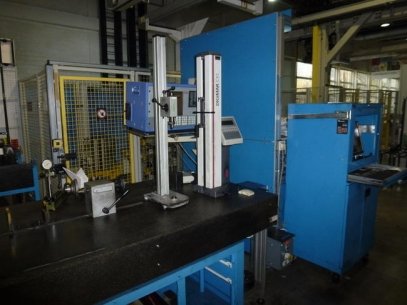

The Digimar CX1 provides for maximum comfort excellent accuracy and comprehensive measurement and evaluation: high measurement accuracy with optical-incremental working measurement system, dynamic probing system and precisely measuring head on stainless steel guideways comprehensive and targeted analysis using histograms, control charts and Pareto charts, 40 measuring programs with a single keystroke are the most important 2D measuring functions available: squareness, angle or pitch circle calculations include Some technical data: measuring range: 600 mm Applications: 935 mm Resolution: 0.01 / 0.001 / 0.0005 / 0.0002 mm margin of error: (2 + L/600) m, L in mm Repeatability: 0.5 m (level ) / 1 m (hole) squareness (electrically adjusted): front <= 8 m Betriebsdaür the battery pack: up to 15 hours Measuring force: 1.0 0.2 N Overall height: 985 mm foot area (L x W): 240 x 250 mm Weight: 29 kg
