Description:
The Duplo perfect slit, cut and crease finishing solution for digital color documents

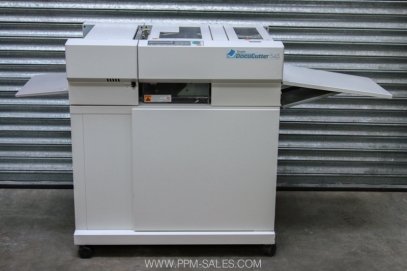

DocuCutter typ DC-545 HC of 2007 n°031263076 Up to six slits (with optional slitter unit), ten cuts, and four creases in a single pass. A barcode reader not only enable this unique system to recall pre-programmed jobs, but can also read an image registration mark ensuring precise output each time. The machine also compensates for image shifts due to inaccurate printing processes. Ideal finishing solution for the short-run, "on demand market". Allows users to quickly produce professionally finished full-bleed documents by simply loading a sheet. Performs a wide variety of applications, including business cards, greeting cards, invitations, brochures, posters, book covers, photographs, and much more. Includes AF-100 High Capacity Feeder Heavy duty casters which allows for easy transportation of unit. The DC-545 cutter makes slitting, cutting, and creasing easy. 80 job memories, LCD display, automatic image shift correction,...
Specifications:
Duplo DC-545 Specifications
Input Paper Size
Minimum 210 mm wide x 210 mm long
Maximum 320 mm wide x 650 mm long
Input Paper Weight
Minimum Nominally 150 to 300 gsm
Note : lighter weights possible subject to paper curl
Finished Paper Size
Minimum Business card size 50mm wide x 90mm long (90mm is in feed direction)
Slitters
Number 5 x rotary slitting knives
Slitter accuracy Programmable 0.1mm steps
Tolerance +/- 0.5 mm maximum over width of 320 mm
Cross Knife Trimmer
Number 1 x cross knife
Maximum Programmable 10 cuts
Lead Edge Trim Recommended minimum 3mm
Trail Edge Trim Recommended minimum 3mm
Accuracy Programmable to 0.1 mm steps
Tolerance +/- 0.7 mm maximum over length of 650 mm
Creaser
Number 1 x creasing rule across (width) paper direction
Maximum Programmable 4 creases, minimum distance to first crease 90mm
Accuracy Programmable to 0.1 mm steps
Tolerance +/- 0.7 mm maximum over length of 650 mm
Feeder
Capacity 100 mm
Type Air knife separation / Top feed / Belt suction
Speed Maximum 1440 creases per hour
A4, short edge feed, 1 crease only @ 11/minute
A4, short edge feed, 1 crease plus 4 side trim @ 9/minute
A Duplo system is quite simply the intelligent choice for your print business.
