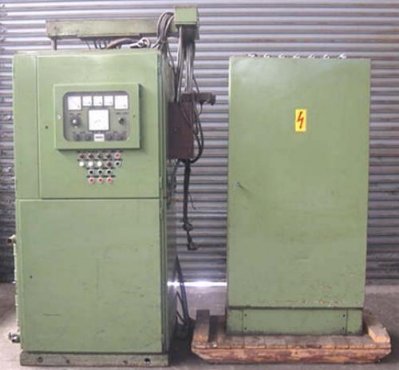

manufacturer: EMA Elektro - Maschinen KG Schultze u. Co.
model: MFAS 50

Connection of the works:
network 50 Hz3: 380 V
nominal current: 115 A
cooling water for transformer, bus bar + capacitors: 56 l/min.
cooling water pressure min.: 3 atue
medium frequency power: 50 kW
max. consumer voltage: 250 V
working frequency: 4 kHz
max. generator current: 200A
max. generator clamping voltage (in front of series capacitor): 440 V
installed by-pass capacitor batterie: 714 kVA / 250 V / 4 kHz
installed series capacitor: 42,2/up / 250 V / 4 kHz

EMA - medium frequency transformer MFU 105 - 50 - 4 - 50

Generator: Motor:
nominal power: 50 kW nominal power: 63 kW
voltage: 250 V voltage: 380 V
current: 200 A current: 105 A
power factor: 1,0 power factor: 0,9
frequency: 4000 Hz frequency: 50 Hz
excitation voltage: 220 V r.p.m.: 2.960
exciting current: 2,4 A rotor: Alu

-
