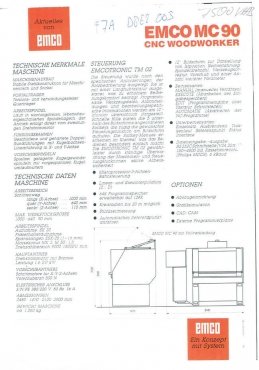

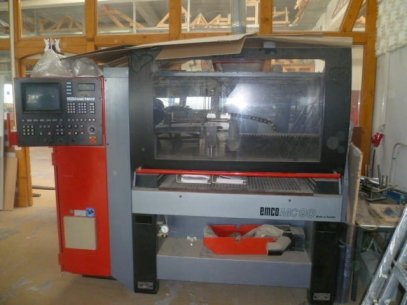

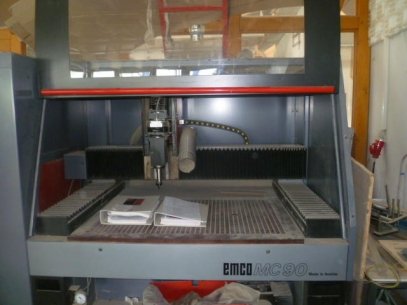

Tech. Specifications: Range: x 1000 mm Y 640 mm Z 115 mm Max workpiece size: 1000 x 640 x 90 mm spindle: - - taper SK 30 - Millholder recording - collets ESX (1-16 mm) - Morse taper MT 2 M 30 x 1.5 Speed range: 9000 180000 r / min Main Power: - AC motor with brake - Power 1.6 / 2.0 KW feed drives stepper motors for x / y / z 500 N El. Connection: 3/N/PE 380/220 V, 50 Hz, 16 A machine dimensions: 2480 x 1470 x 2100 x 2500 mm Weight: 1250 Kg The machine comes from a training workshop and has worked only 100 BH.
