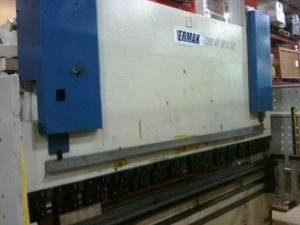

Hydraulic Press Brake: ERMAK CNCAP 3100x120 Used press Brake
Capacity : 120 Metric Ton – 132 US Short Tons
Overall Bending Length: 122”
Between Side Frames: 100”
Two axis X-R CNC controlled back gauge
Throat in the side frames: 15.7”
Top tool clamping for NA – European style tooling
No tooling, comes with riser block for single V dies
Quick release top clamps

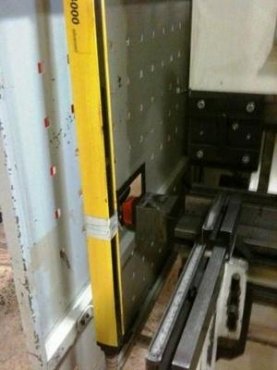

Light curtain beam safety control with interlock to the machine controls
Y1-Y2 independent cylinder control
Manual crowning table

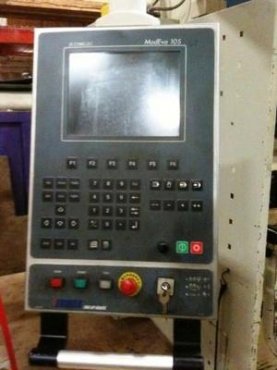

Equipped with the Cybelec Modeva 10S 2D graphic CNC control:
Y1-Y2
Angle, Depth and pressure programming
Automatic bending sequence calculation
Library for : top tools, bottom tools, materials
Programmable: Top Dead center, Fast Slow point, plate thickness
Retraction of the back gauge
Hydraulic tilting of the beam (Y1-Y2)
New in 2005, very good condition can be seen under power
