ROLL FORMING LINE FOR THE PRODUCTION OF ''FEET STOPPER PROFILE''
Technical specification
Raw material: Galvanized steel
Thickness = 1,00 mm
Breaking point max = 400 N/mm2
Yield point max = 195 N/mm2
Coil dimension: Max weight = 1500 kgr
Max width = 300 mm
Inside diameter = 508 mm
Maker: GASEM (Italy)
Build: 2006
Line space: 14 m (long)
Line Condition: On production, very good condition
Line direction: From left to right
Electric power: V 400 , Hz 50
Pneumatic power: 6 - 8 bar
Line Description

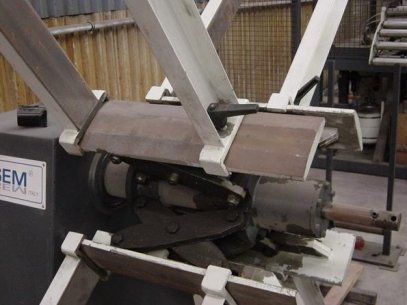

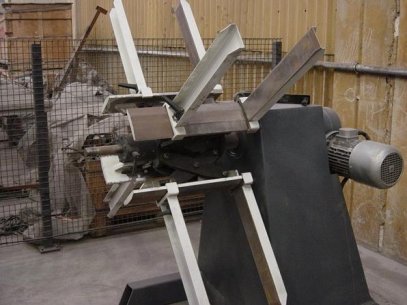

a) Decoiler
- Mandrel = 1
- Capacity = 1500 kgr
- Width max = 300 mm
- Max coil outer diameter = 1400 mm
- Mandrel expansion min - max = 470 mm - 520 mm
- Rotation drive = motorized

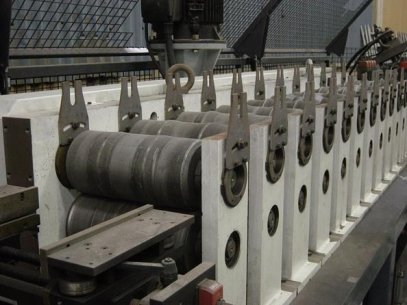

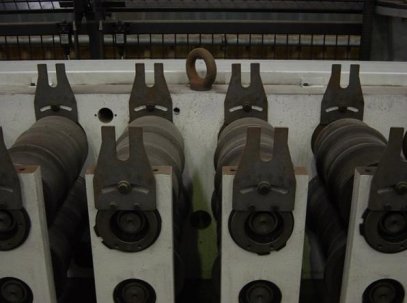

b) Roll forming System
- Forming groups = No 12
- Forming groups distance = 210 mm
- Width max = 300 mm
- Shafts diameter = 40 mm

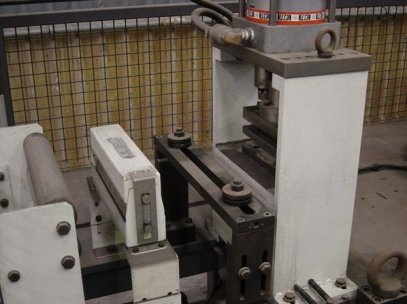

c) Cutting System
- Cutting die with scrap = No 1
