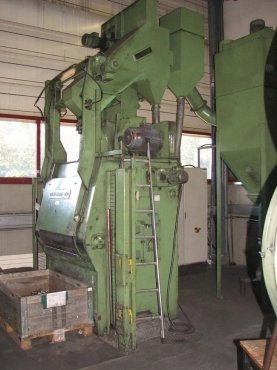

BLASTING DRUM MACHINE WS-1-200
TECHNICAL DETAILS
numbers of blast wheels 1
blast wheel details U70 x 380
blast wheel speeds 2250 min‾¹ abrasive throwing speed 56 m / sec
Steel medium throughput 170 kg
first beam center panel 190 - 250 kg
first beam center panel GRANAL 100 kg
beam chamber diameter 700 mm
beam space width 910 mm
priming volume 0.14 m³
charge weight 250 kg
max. Single piece weight 10 kg
max. Piece size (diagonal depending on shape) 350 mm
min. Piece measuring 10 mm
band-speed jet undercarriage 4.9 m / min
dedusting 2500 m³ / h
static pressure 1200 Pa
at suction 120 mm WS
Solenoid valve 220 V
50 Hz
8 Watt
DC brake-blower
Compressed air 6 bar
MOTOR DIRECTORY:
- blower 1500 min‾¹ 7.5 kW
- bucket elevator 1500 min‾¹ 1.1 kW
- tape drive 1500 min‾¹ 0.25 kW
- elevator door 1500 min‾¹ 0.48 kW
- vibrator 120 W = 0.120 kW 0.12 kW
ACCESSORIES:

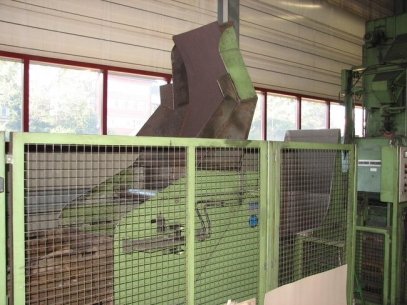

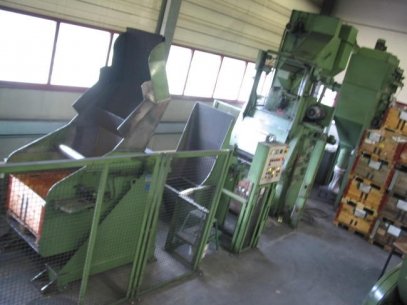

+ pallet lifting and dumping device

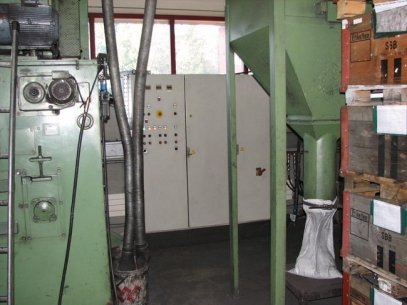

+ offshore loading container + dust cutter + control
CONDITION:
+ The metal strap is used, it may still be some time so worked.
+ The machine was dismantled and can't be inspect under power.
+ An inspection in our warehouse is possible.
