x-travel 780 mm
y-travel 220 mm
z-travel 380 mm
table-size 1100 x 300 mm
spindle taper SK 40
spindle turning speed range 6 von 31,5 - 1000 U/min
feeds: 18 von 18 - 630 mm/min
main drive 4,4 / 3,3 kW
feed motor 1,5 kW
rapid traverse 1250/2500 mm/min
vertical head SK 40
weight of the machine ca. 1,8 t
dimensions of the machine ca. 1750 x 1400 x 1900 mm

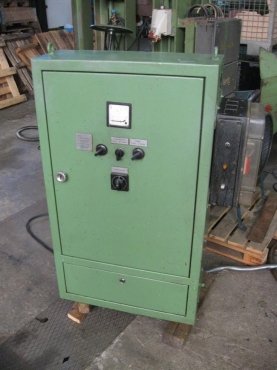

Seperate control cabinet 880 x 280 x 1260 mm
electric for three-phase 380 Volt
Cooling installation
Machinelight
Machinefeets
Opposite bearing
Central lubrication " Vogel "
Milling arbor 3 Stueck
Taper ( diverse )

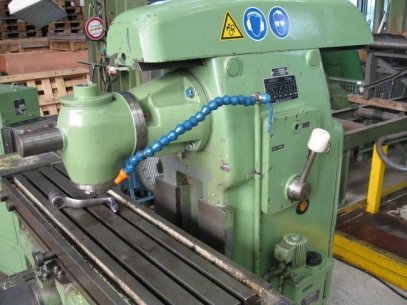

The DOUBLE SWIVELL HEAD is milling helical not only in Y -, also in X - direction, automatic feeds in all three
directions.
The year of manufacture is estimated.
