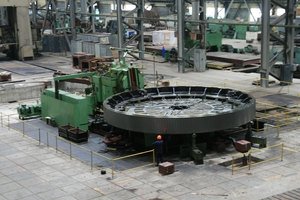

Gear-shaping machine MAAG SH 600/735 M (yom 1981)
To expand the technological capabilities of the machine upgraded.
Made extra bed dimensions 5000x2000x12000 mm.
Added a second position the table at a distance of 2500 mm from the first .
Made a special table d 7870 mm, weighing 30 000 kg and a mechanical unloading system table.
Specifications:
Accuracy class P
stroke of the slide 185 - 1320 mm
diameter table 2015 mm
break-table travel 2h800=1600 mm
diameter holes in table 901 mm
Sliced module:
comb 2-40
cutter 50
number of cut tooth 12-1000
angle of a tooth any
outer diameter of the details in a position table 450 - 7350 mm
outer diameter of the details at the 2-position desk 7000 - 12 000 mm
maximum length of a tooth 1280 mm
Maximum weight of workpiece 140 000 kg
Machine dimensions 19050x14000x6210
Machine weight 355 000 kg
Operating time and technical conditions: The machine was constructed in 1983 .
Intensively not exploited. The total operating time of about 26 000 hours.
modernized in 2008, working hours after modernization - 6000 hours.
Located on the foundation up and running. Changes in the eclectic and the hydraulic system of the machine have been made.
Rigging:
set of replacement wheels 80 pcs.
Shuttle table F 4000 1 pc.
special table F7870 1 pc.
long Coasters 24 pcs.
Coasters short 24 pcs.
Counterweight additional discharge system 8 pcs.
