cutting diameter 260 mm
saw band length 3150 mm
cutting width 325 mm
capacity 45 degrees: square 210 mm
capacity 45 degrees: flat 240 x 200 mm
capacity 45 degrees: round 230 mm
dimensions of saw-band 3150 x 25,4 x 0,9 mm
cutting range flat 320 x 200 mm
capacity square 250 mm
cutting speed 40/80 m/min
weight of the machine ca. 890 kg
dimensions of the machine ca. x 1,7 x 1,7 m
Electric 380 Volt
Cooling equipment

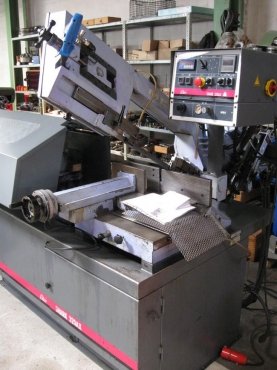

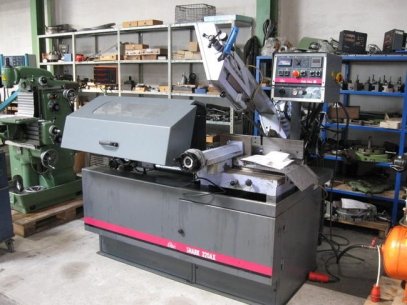

Pneumatic Band saw mitre full automatic also manually and semiautomatically working for mitres 0-45° left
- hinged protection hood
- adjustable clamping pressure

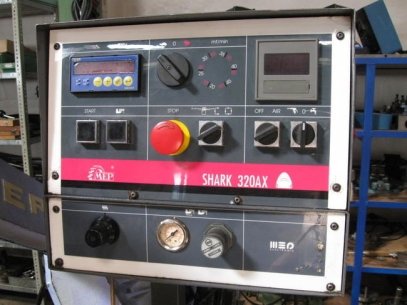

- control unit with Programmator for numbers of items in different programs
- maximal feed length 500 mm ( from 1 to 99 times repeatable )
