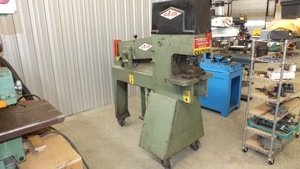

1998 Metal Muncher 40 Ton Hydraulic Ironworker Model MM-40 S/N: 054311098
SPECIFICATIONS:
Throat Depth: 7"
Open Height: 9"
Stroke Length: 4-1/4"
Ram Shaft Diameter: 2"
Strokes Per Minute: 40 @ 1/2
Platen Size (Depth x Width) - 10" x 21"
Approximate Work Station Height: 34-1/4"
Punch Tonnage: 40 Ton
Maximum Material: 7/8" Diameter through 1/2" Thick
Plate Shear Blade Length: 14"
Angle Shear Capacity: 3" x 3" x 5/16"
Bar Shear Capacity: Rounds: 1"; Squares: 1"
Coper/Notcher Capacity: 2-1/16" x 2-3/4" x 5/16"
EQUIPPED WITH:
Dual Hydraulic Cylinders Allowing for Independent and Simultaneous Operation at each end of Machine
Remote Electric Foot Pedal for Actuation of Press Cylinder
Round and Square Bar Shear Option
Assortment of Punches and Dies
5 HP 230/460 Volt Hydraulic Pump Motor with Electrical Controls
Approximate Weight: 2,200 lbs.
Approximate Dimensions: 24"W x 60"L x 62"H
