max. wheel diameter 400 mm
gear width mm
max. module 6
min. module 1
wheel diameter with counterstay max. 340 mm
wheel diameter - without counterstay max. 400 mm
maximum axial offset 275 mm
tangential adjustment max. 100 mm
tooth helical angle 45 °
cutter diameter max. 145 mm
hobbing length max. 170 mm
table diameter 370 mm
hob turning speeds ca. 63-180 U/min
feeds infinitely variable axial 0,2-10 mm/U
feeds infinitely variable tangential 0,1-5 mm/U
radial for spur gears 0,1-4 mm/U
radial for worm gears 0,025-1 mm/U
rapid traverse axial 500 mm/min
rapid traverse tangential 250 mm/min
radial for spur gears 400 mm/U
radial for worm gears 100 mm/U
main drive 7,5/10,5 kW
direct current motor 7,4 kW
connected load 22 kVA
electric cabinet: height 2,2 m
weight of the machine ca. 5,5 t
dimensions of the machine ca. 3 x 3,3 x 2,45 m
Electric 380 Volt

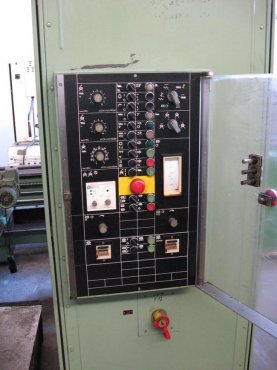

in 2 switchgear cabinets with control panel

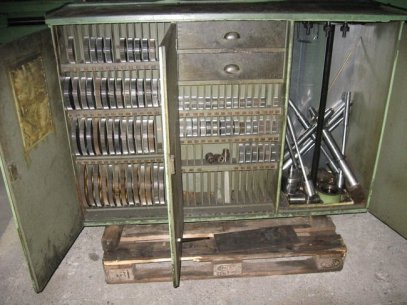

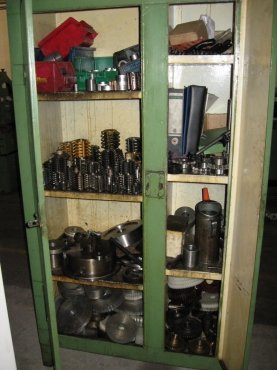

2 cupboards with miller and collet angles
Chip conveyor
Working room-suck away
Machinefeets
Cooling etc.

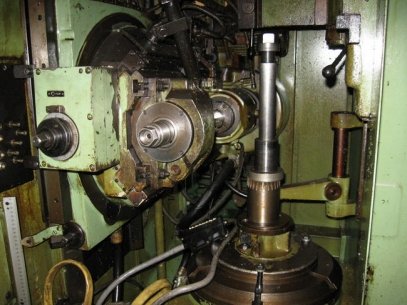

very good condition - little used, back rests with vertically adjustable and swing-out back support - hydraulic clamping of workpiece.
Been suitable for: Normal and diagonal spur wheels, worm gears and snails, tooth waves, splined shafts, chaining and check vein, serrations. External teeth in the axial, axial radial, radial and tangential procedure can be manufactured. The axial milling can take place in the equal or opposite milling cut. All procedures become in the autom. cycle accomplished, in addition is also the single milling on average applicable.


Member of the association of German machine tools dealers FDM and machine dealer with own stock of 2500 m².

-
