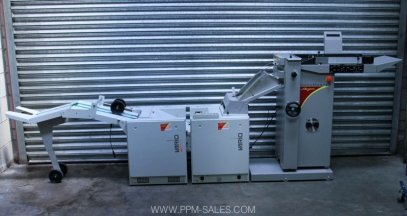

Morgana Documaster Booklet making system, fold - stitch - trim
The Morgana DocuMaster booklet maker and trimmer is a booklet making system that over comes the problem of finishing pre-collated sets. The Morgana DocuMaster Pro is a professional booklet maker that allows for booklets to be made without having to remove covers to crease them to then manually reinsert them back into sets.
The DocuMaster has Morgana's SmartScreen control system which means the machine is simple to use and set up. It speeds up production and removes the time consuming jobs of creasing covers as this is done at the start of the booklet making process when feeding the sheets.
Simple and easy to operate
Removes time consuming taaks such a creasing covers individually
Single phase.
Specifications:
MAXIMUM SHEET SIZE
(Creasing element) 60.960cm x 33.020cm
(Bookletmaker) 48.260cm x 32.004cm
MINIMUM SHEET SIZE
(Creasing element) 13.970cm x 16.002cm
(Bookletmaker) 14.732cm x 21.082cm
MAXIMUM RECOMMENDED BOOK THICKNESS 22 sheets 9kg bond or 12 sheets 45kg book*
MAXIMUM RECOMMENDED WEIGHT (CREASING) 68kg cover stock*
MAXIMUM NUMBER OF CREASES 9
INCREMENTAL ADJUSTMENTS TO: 0.0076200cm
SPEED (CREASING ELEMENT) 5000+ sheets ph
SPEED (DOCUMASTER SYSTEM) Up to 1440 books per hour
(Dependent on number of sheets in the book)
DIMENSIONS (WITH SQUARE BACK SYSTEM)
Length 269.24cm
Width 71.120cm
DIMENSIONS (WITHOUT SQUARE BACK SYSTEM)
Length 274.32cm
Width As above
PROGRAMMING
Creasing element Up to 9 jobs with up to 9 creases per job
Bookletmaking element Up to 6 jobs
WEIGHTS:
Documaster 264kg
Square Back System (SBS) 135kg
POWER REQUIREMENTS
Bookletmaking element 240V
Creasing element 1ph 240V
