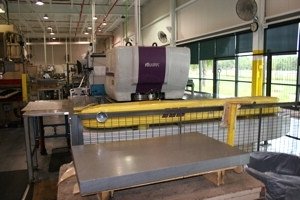

2000 22 Ton Murata Centrum 2500I w/ touchscreen control
Specifications:
(1)PRE-OWNED MURATA WIEDAMAN CENTRUM 2500I CNC TURRET PUNCH PRESS
GENERAL SPECIFICATIONS
PUNCHING CAPACITY22 TONS
PRESS DRIVE MOTOR 5 HP
CLUTCH/BRAKE SYSTEM HYDRAULIC
THROAT DEPTH 51.18"
TABLE TRAVEL 52.56" X 50.80"
MAX SHEET SIZE 49" X 49"
(WITH ONE REPO USING SUPPORT TABLES) 49" X 98"
MAX SHEET WEIGHT 165 LBS.
MAX MATERIAL THICKNESS .250"
RAM STROKE 1.2"
STRIPPER/DIE CLEARANCE .84"
TURRET CAPACITY 22 STATIONS
SPEEDS
X AXIS 1,970 IPM
Y AXIS 2.460 IPM
TURRET ROTATION 32 RPM BI-DIRECTIONAL
MINIMUM DISTANCE BTWN HOLDERS 10.39"
POSITION COMMANDS INCH/METRIC
LEAST PROGRAM INCREMENT .001"
TURRET CONFIGURATION* QUANTITY STATION RANGE SYMBOL
12 UP TO 1" DIA. B
D6 1" - 2" DIA. C-D
2 2" - 3" DIA. E-F
2 2" DIA. A/I D
*WITH APPROPRIATE PUNCH/DIE HOLDER
EQUIPPED WITH:
SET OF WORK HOLDERS
VARITOOL AND VARIMARK READY
SET OF PUNCH AND DIE HOLDERS (MARATHON PUNCH HOLDERS AND 114 DIE HOLDERS)
ONE MACHINE HAS SLUG CONVEYOR
CONTROL: MURATEC TOUCH SCREEN GRAPHIC DISPLAY CNC
AXIS MOTORS: FANUC AC SERVOS
NOTE: AIR REQUIRED FOR INDEX PIN CYLINDERS, WORK
HOLDERS, REPO CYLINDERS, AND AUTO INDEX TOOLS.
PUNCHING CAPACITY .250" MILD STEEL 1.125" HOLE
.135" MILD STEEL 3" HOLE
MAX AXIS SPEEDS
APPROXIMATE OVERALL DIMENSIONS: 113"W X 169” L X 73” H
APPROXIMATE OVERALL WEIGHT 20,900 LBS.
FOUNDATION REQUIREMENTS NONE
POWER REQUIREMENTS 13.5 KVA
AIR SUPPLY 3.6 SCFM @ 65 PSI
