Used Cleaning Equipment / degreasing / metal degreasing, electrically heated.

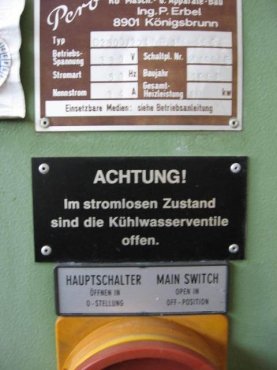

Type: D 2500/274 Gr.1N-4653
Operating voltage: 380 V / 50 Hz
Rated current: 34 A
Schematic no. 4017235
Total heating power: 10 kW

Dimensions:
Width: 4,500 mm
Depth: 3,500 mm

Conveyor belt dimensions:
Length: 4,000 mm
Roll width: 500 mm
Overall Width with control unit: 990 mm
Tip height / height: 900 mm
Total height with control unit: 1,250 mm
Clearance: 260 mm

Measurements cleaning system:
Width: 1,880 mm
Depth: 2,200 mm
Height of structures: 2.400 mm

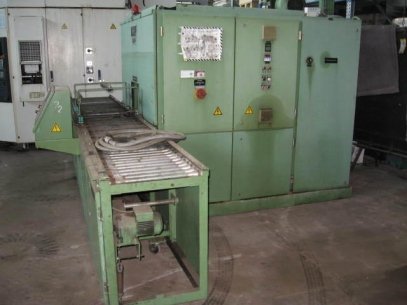

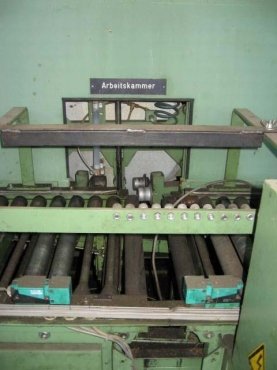

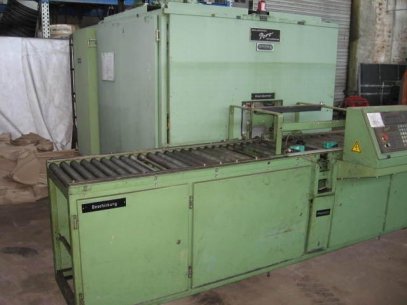

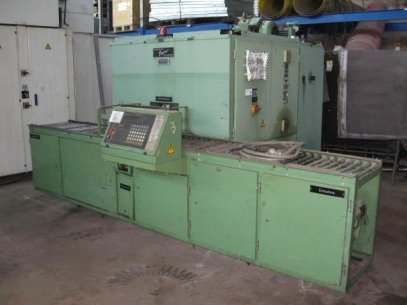

Plant for cleaning of small metal parts. The metal parts are placed in a cage (200 x 400 mm) and retracted into the machine where it'll be cleaned of all dirt, oil and grease.

-
