ROLL FORMING LINE FOR THE PRODUCTION OF SCAFFOLDING TABLES AND TRAPEZODIAL PROFILE FOR COMPOSITE DEC

Technical specification

Raw material: Galvanized steel coils S320GD~S350GD

Coil Specification: Min thickness= 0,75 mm
Max thickness= 3,50 mm
Max width= 1.250 mm
Max diameter= 1.750 mm
Max weight= 15 tons

Line Length: 54 m

Maker: PM & GASPARINI

Build: 2006

Product capacity: 30 ton/day 1 shift

Line Condition: On production, very good condition

Line direction: Left to right at operation slide




Line Description


Coil Saddle: 1 set

Uncoiler: 1 set

Coil opener: 1 set

Hydraulic unit: 1 set

Hibond head: 1 set

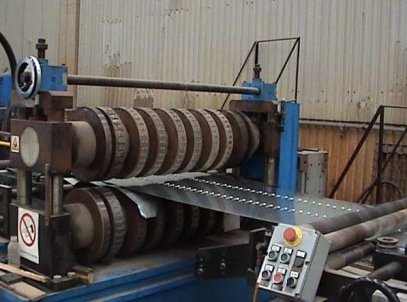

Press for imprints and embossments: 1 set (3 set of dies-quick change procedure)

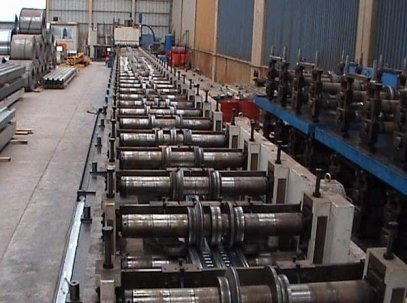

- Roll former with 40 pass
Cut-off unit: 1 set

Casket: 10 pieces
8 with 4 axes (4 up and 4 down) with rolls of configuration
2 with 3 axes (3 up and 3 down) with rolls of configuration

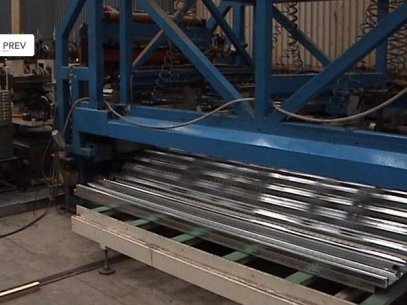

Automatic off- load table for 16 m

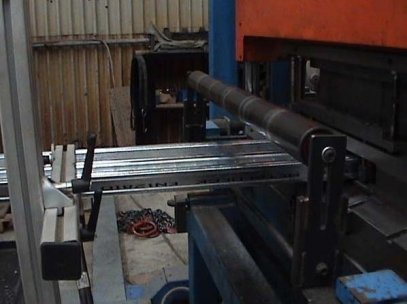

Double clinching unit for putting the hooks in the scaffoldings tables.

-
