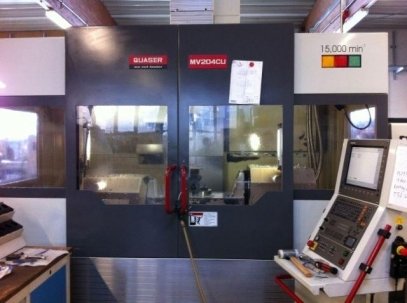

Manufacturers Quaser MV 204 CU, Heidenhain TNC 530 i X / Y / Z / A / B mm / deg min-1 1,200 x 700 x 610 x 360 x 115 Table size mm 1400 x 700 mm table load kg 1000 kg spindle power kW 25 kW spindle speed to 15,000 min-1 spindle torque Nm 229 Nm Number of tools 60 tool taper SK 40 tool change (chip to chip) s 5.0 s count axles 5 TSC: 30 bar Weight kg 9500 kg rapid speed m / min to 36 m / min management system linear guides
