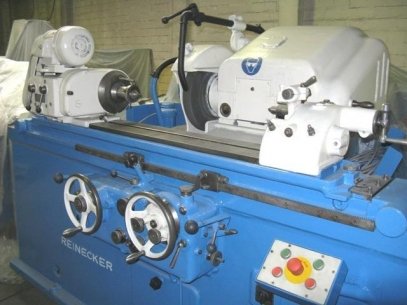

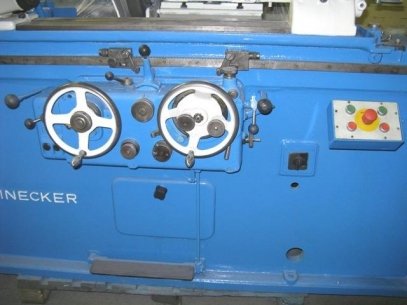

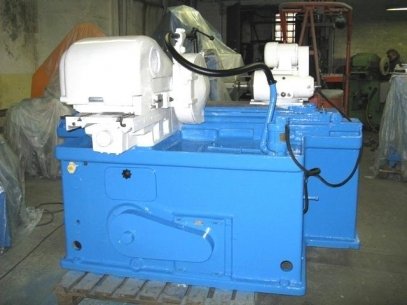

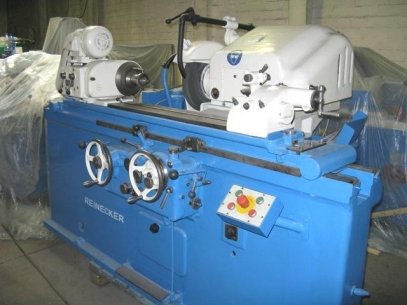

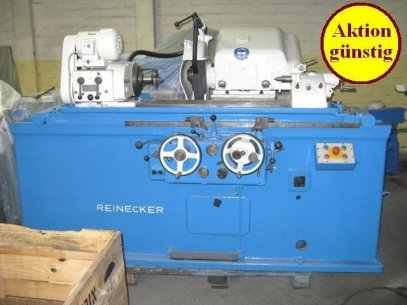

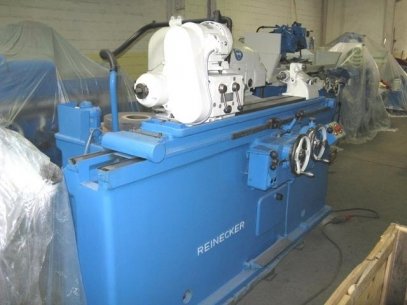

--- We can give nothing but cheap to sell, we do! Please convince yourself that this price is cheap! Make: REINECKER Type: ERS 1 EH machine no. 42 145 Year: / 2012 TÃP. Comm Number 3990480/009 Specifications: Height: 125 mm Voice - 250 mm turning length: 800 mm Wheel Diameter: 400 mm Bore - 127 mm Maximum width of a full wheel in plunge: 50 mm Maximum overall width of a wheel set 80 mm largest sum of the widths: 50 mm grinding wheel rotation: min 1650 U /. = 35 m / s sliding head Largest Schleifkopfhub: 295 mm Maximum lift above wheel: 200 mm Additional Stroke: 95 mm Automatic feed speed interval: 0.0025 - 0.04 mm feed handwheel: 0 - 0.8 mm Automatic feed: 0 - 0.8 mm at a feed handwheel: 2.0 mm at a feed handwheel graduation: 0.0025 mm Eilweg of grinding head: 40 mm Largest delivery related to the diameter: 2 mm relative to infeed tip switch to the diameter: 0,005 mm infeed with micro-stop based on the diameter: 0,001 mm workpiece spindle head Workpiece speed: 50 - 400 rpm /. Rotation of the workpiece spindle head against the grinding wheel 90 spindle cone, or inside the workpiece spindle taper: MT3 tailstock internal taper of quill: MT3 Spindle stroke: 60 mm Table: Largest table tilt: 10 greatest [...Technical data truncated]
