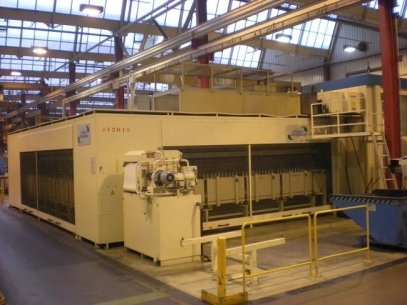

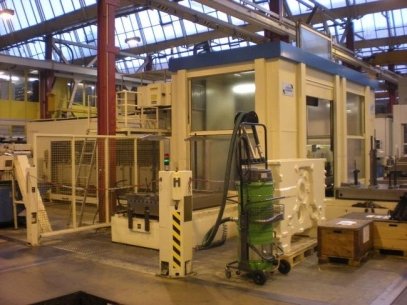

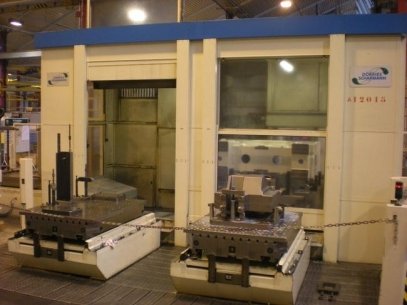

Make: Dörries Scharmann Model: Ecocut 1 Z / TDV 3 Year: 1992 Serial no. Yxyx Control: Siemens travels 850M: X = 2500mm, Y = 1600mm Z = 1400mm, W = 600 mm W = 0.0001 x table surface 360 : 1250 x 1600 mm Table load: 8000 kg Speed range: 12 - 3000 min-1 feed in X, Y, Z: 1 - 12000 mm / min. Feed range in W: 1 - min 6000 mm /. Rapid traverse in X, Y, Z: 12000 mm / min. Rapid traverse in W: 6000 mm / min. Rapid traverse in B: 3.1 min-1 Max Torque: 2300 Nm engine power at 100% duty cycle: 40 kW Connected load: 105 kVA tool holder: SK50 DIN69871 Form A tool locations: 215 Machine weight: 59000 kg space (LxWxH): 13500 x x 13500 4500 mm Equipment: - host - Chip conveyor - belt filter - broken drill and torque monitoring - probes - HöhereWerkzeugzugskraft - Photocell - tool measurement - internal coolant (70 bar) - 4 pairs of patterned sheets 800x1250 mm pitch 50/100 and 16F7/M16 - Tooling Modular system UNIDORN about 200 base holder SK50 DIN69871, Form AD / B approximately 350 structural components with separation point UNIDORN extensions, reductions taper recordings (DIN228), Cylinder shank shots (DIN1835B), Combi shell, Imperial Recordings (CKB system), Wohlhaupter recordings (MVS) and more. Further technical details and photos on request! Sale date: end of 2013
