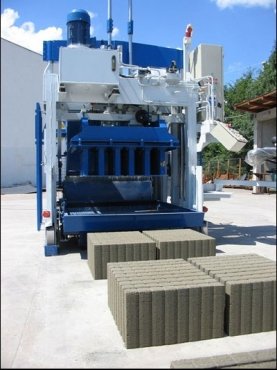

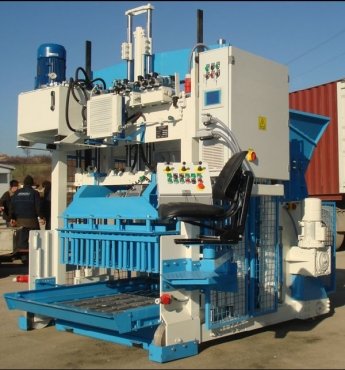

Movable concrete block making machine SUMAB E-12, EGG LAYER TYPE.
With movable machine SUMAB E-12 SEMI AUTOMATIC, following concrete products are produced on efficient way:
Hollow block stones
Solid block stones
Chimneys
Light weight blocks
Paving stones [with vibration table option] *additional option
Following measurements respecting the generated products are characteristic for
SUMAB E-12 SEMI AUTOMATIC:
Concrete element height: 175 mm until 500 mm.
Maximum production surface [area]: 1.290 mm x 1.130 mm (product height up to 250 mm).
Maximum production surface [area]: 1.240 mm x 900 mm (product height from 250 to 330 mm)
Min. block height: 175 mm
Max block height with main tamper head plate: 300 mm
Max block height without main tamper head plate: 500 mm
Production capacity:
For blocks 400 x 200 x 200 mm 1.200 blocks/h.
For blocks 400 x 200 x 120 mm 2.000 blocks/h.
Options - cable, moulds etc. – EXTRA.
Block machines SUMAB are a guarantee of quality, durability and reliability. Block producing machine is produced on Scandinavian technology, using components from leading European manufacturers!
Scandinavian quality at the best price!
If You need more information, You can visit our website, or send a request. We'll necessarily find the Best decision for You!
