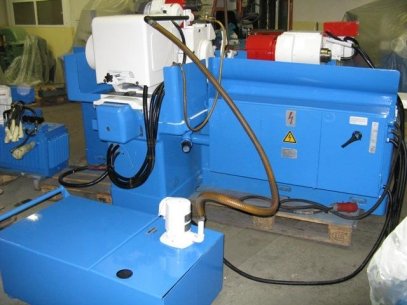

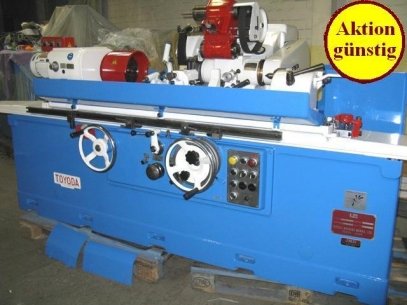

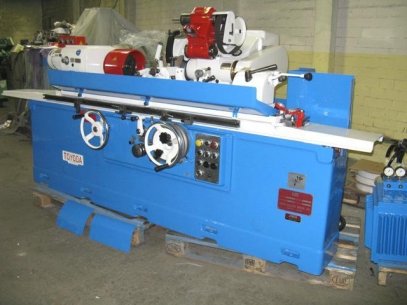

--- We can give nothing but cheap to sell, we do! Please convince yourself that this price is cheap! Make: Toyoda Type: GUP 28-100 mach.-no.: R 9397 Year: 1971/2011 TÃP.. Comm Number 3991000/009 Specifications: Height: 150mm swing - 300mm between centers: 1000 mm Wheel Diameter: 355 mm Bore - 127 mm Maximum width of a full wheel in plunge: 50 mm Maximum overall width of a wheel set 80 mm largest sum of the widths: 50 mm grinding wheel rotation: 1.650 / 2.150 U / min. Grinding head rotation of the grinding head left - right: each 30 Biggest Schleifkopfhub: 295 mm Maximum lift above wheel: 160mm Additional Stroke: 95 mm Automatic feed speed interval: 0.0025 - 0.04 mm feed handwheel: 0 - 0.8 mm Automatic feed: 0 - 0.8 mm at a feed handwheel: 1.0 mm at a feed handwheel graduation: 0.0025 mm Eilweg of grinding head: 40 mm with respect to the delivery Largest diameter: 2 mm infeed with touch switch based on the diameter : 0,005 mm infeed with micro-based attack on the diameter: 0,001 mm workpiece spindle head Workpiece speeds, infinitely variable 20 - 300 rpm /. Rotation of the workpiece spindle head against the grinding wheel 90 spindle cone, or inside the workpiece spindle taper: MT4 Tailstock: [...Technical data truncated]
